BIC
SOLVENT WELD FITTINGS - UNIONS

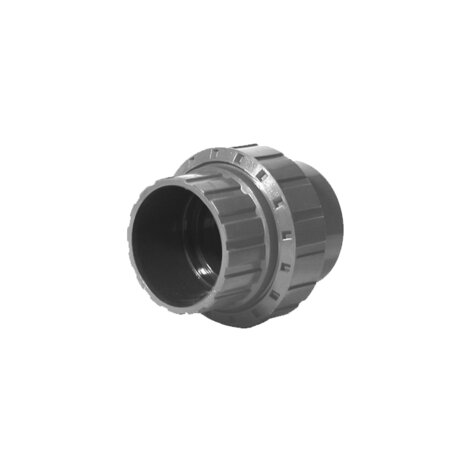

Union with solvent weld socket, with O-Ring in EPM or FKM
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.

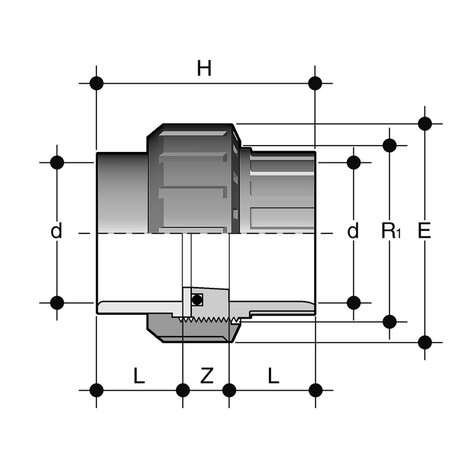

| Objednací číslo | Materiál | Kategorie | d | product.detail.attribute.R[5:1] | PN | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| BIC016E | PVC-C system | Tvarovky | 16 | 3/4" | 16 | 33 | 41 | 14 | 13 | 23 |
| BIC020E | PVC-C system | Tvarovky | 20 | 1" | 16 | 41 | 45 | 16 | 13 | 39 |
| BIC025E | PVC-C system | Tvarovky | 25 | 1"1/4 | 16 | 50 | 51 | 19 | 13 | 68 |
| BIC032E | PVC-C system | Tvarovky | 32 | 1"1/2 | 16 | 58 | 57 | 22 | 13 | 94 |
| BIC040E | PVC-C system | Tvarovky | 40 | 2" | 16 | 72 | 67 | 26 | 15 | 163 |
| BIC050E | PVC-C system | Tvarovky | 50 | 2"1/4 | 16 | 79 | 79 | 31 | 17 | 190 |
| BIC063E | PVC-C system | Tvarovky | 63 | 2"3/4 | 16 | 98 | 98 | 38 | 22 | 355 |
