BIFXC
ADAPTOR FITTINGS - UNIONS

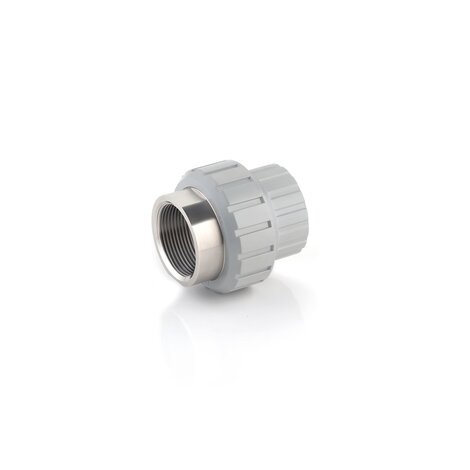

Adaptor union in PVC-C/STAINLESS steel with solvent weld socket d and BSP threaded STAINLESS steel female end R with O-Ring in EPDM or FKM
Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.

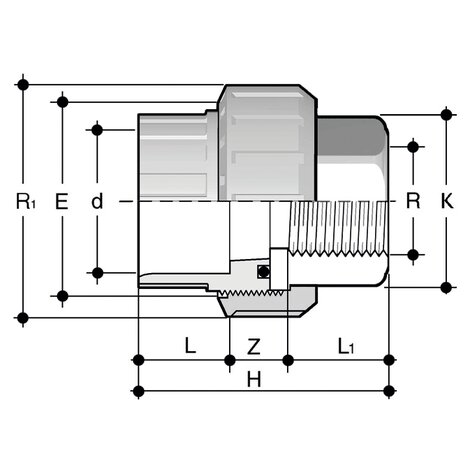

| Objednací číslo | Materiál | Kategorie | product.detail.attribute.d x R | product.detail.attribute.R[5:1] | PN | E | H | product.detail.attribute.K | L | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BIFXC016038F | PVC-C system | Tvarovky | 16 x 3/8" | 3/4" | 16 | 33 | 45,5 | 20 | 14 | 13,5 | 18 | 52 |
| BIFXC020012F | PVC-C system | Tvarovky | 20 x 1/2" | 1" | 16 | 41 | 48,5 | 25 | 16 | 16,5 | 16 | 83,5 |
| BIFXC025034F | PVC-C system | Tvarovky | 25 x 3/4" | 1"1/4 | 16 | 50 | 54,5 | 32 | 19 | 18,5 | 17 | 156 |
| BIFXC032100F | PVC-C system | Tvarovky | 32 x 1" | 1"1/2 | 16 | 58 | 59,5 | 38 | 22 | 19,5 | 18 | 176 |
| BIFXC040114F | PVC-C system | Tvarovky | 40 x 1"1/4 | 2" | 16 | 72 | 68,5 | 48 | 26 | 21,5 | 21 | 361 |
| BIFXC050112F | PVC-C system | Tvarovky | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 84,5 | 55 | 31 | 23 | 30,5 | 450 |
| BIFXC063200F | PVC-C system | Tvarovky | 63 x 2" | 2"3/4 | 16 | 98 | 94,5 | 69 | 38 | 27 | 29,5 | 792 |
