C6.30
INDUCTIVE CONDUCTIVITY TRANSMITTER

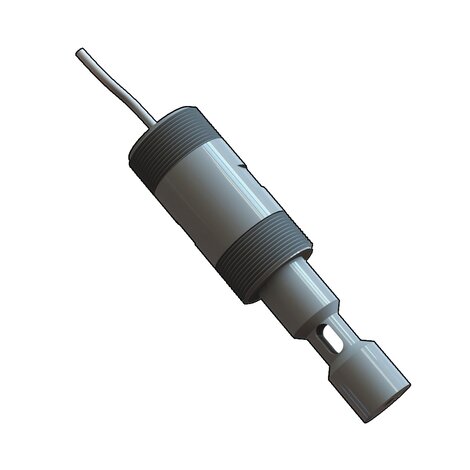

C-PVC Inductive Conductivity Transmitter with Temperature Sensor (Pt100) included
FLS C6.30 is a family
of inductive conductivity
transmitters which are
made by a 4-20mA output
device (two wire technology)
integrated onto an inductive
conductivity sensor. This type
of measurement technology
allows a broad range of
applications especially
to measure high values
of conductivity (till 1000
millisiemens) in aggressive
fluids (C-PVC is the only
wetted material). As no
electrodes are directly in
contact with liquid, a reliable
and stable measurement
is guaranteed for a long
operating time. A proper
automatic temperature
compensation (ATC) is granted
by a Pt100 integrated into
instrument body. The isolated
4-20mA output is perfect for
direct connections to PLCs or
data loggers without any extra
interfaces. Transmitter as well
as temperature sensor are
supplied already calibrated.
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.family | Série | product.detail.attribute.Description | product.detail.attribute.Applications/ Operative Range | product.detail.attribute.Connection | product.detail.attribute.Installation |
|---|---|---|---|---|---|---|---|---|
| C6.30.01 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | ph / ORP / pressure-level Electrodes | Potenciometry a indukční senzory vodivosti | Pt100 included | 0-10 mS/cm | 3 m | 1 1/2" NPT male threaded |
| C6.30.02 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | ph / ORP / pressure-level Electrodes | Potenciometry a indukční senzory vodivosti | Pt100 included | 0-100 mS/cm | 3 m | 1 1/2" NPT male threaded |
| C6.30.03 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | ph / ORP / pressure-level Electrodes | Potenciometry a indukční senzory vodivosti | Pt100 included | 0-1000 mS/cm | 3 m | 1 1/2" NPT male threaded |
- APPLICATIONS • Water treatment • Waste water treatment • Cooling towers • Scrubber systems • Metal finishing Coating and corrosion fluid measurement MAIN FEATURES • Corrosion & coating resistant • Compact transmitter • No calibration required • Easy installation • Pt100 sensor integrated • Suitable for submersible installation
