CIF
FITTINGS FOR SOCKET WELDING - CAPS

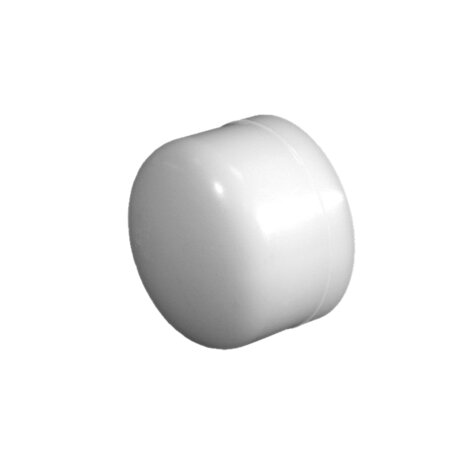

End cap for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Objednací číslo | Materiál | Kategorie | d | PN | H | E | g |
|---|---|---|---|---|---|---|---|
| CIF016 | PVDF system | Tvarovky | *16 | 16 | 20 | 23 | 7 |
| CIF020 | PVDF system | Tvarovky | 20 | 16 | 23 | 28 | 11 |
| CIF025 | PVDF system | Tvarovky | 25 | 16 | 27 | 33 | 19 |
| CIF032 | PVDF system | Tvarovky | 32 | 16 | 31 | 41 | 32 |
| CIF040 | PVDF system | Tvarovky | 40 | 16 | 36 | 50 | 47 |
| CIF050 | PVDF system | Tvarovky | 50 | 16 | 43 | 61 | 75 |
| CIF063 | PVDF system | Tvarovky | 63 | 16 | 51 | 76 | 135 |
| CIF075 | PVDF system | Tvarovky | *75 | 16 | 58 | 90 | 215 |
| CIF090 | PVDF system | Tvarovky | *90 | 16 | 68 | 109 | 400 |
| CIF110 | PVDF system | Tvarovky | - | - | - | - | - |
