DIC
SOLVENT WELD FITTINGS - REDUCERS

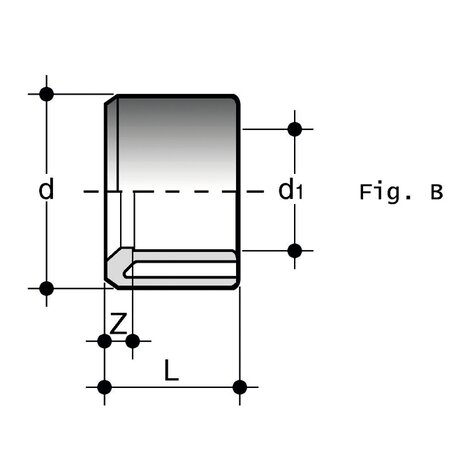

Reducing bush with solvent weld spigot (d) and solvent weld socket (d1 reduced) (fig.B)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.d x d[5:1] | PN | L | Z | g |
|---|---|---|---|---|---|---|---|
| DIC040020 | PVC-C system | Tvarovky | 40 x 20 | 16 | 26 | 10 | 27 |
| DIC040025 | PVC-C system | Tvarovky | 40 x 25 | 16 | 26 | 7 | 26 |
| DIC050032 | PVC-C system | Tvarovky | 50 x 32 | 16 | 31 | 9 | 39 |
| DIC063032 | PVC-C system | Tvarovky | 63 x 32 | 16 | 38 | 16 | 81 |
| DIC063040 | PVC-C system | Tvarovky | 63 x 40 | 16 | 38 | 11,5 | 84 |
| DIC075050 | PVC-C system | Tvarovky | 75 x 50 | 16 | 44 | 12 | 126 |
| DIC090050 | PVC-C system | Tvarovky | 90 x 50 | 16 | 51 | 20 | 213 |
| DIC090063 | PVC-C system | Tvarovky | 90 x 63 | 16 | 51 | 13 | 209 |
| DIC110063 | PVC-C system | Tvarovky | 110 x 63 | 16 | 61 | 23 | 365 |
| DIC110075 | PVC-C system | Tvarovky | 110 x 75 | 16 | 61 | 17 | 386 |
| DIC160110 | PVC-C system | Tvarovky | 160 x 110 | 16 | 86 | 25 | 1040 |
| DIC225160 | PVC-C system | Tvarovky | 225 x 160 | 10 | 119 | 33 | 2100 |
