DIMV
ADAPTOR FITTINGS

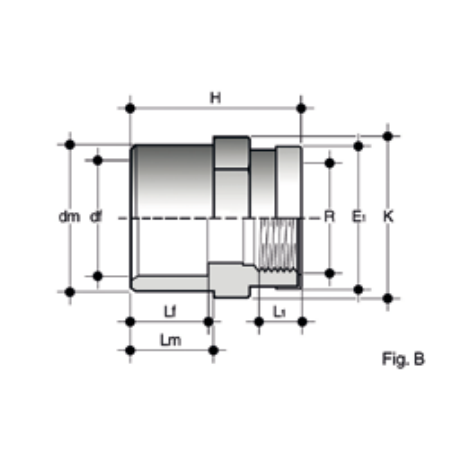

Double adaptor with solvent weld socket df, solvent weld spigot dm and BSP threaded female end R with stainless steel reinforcing ring (fig. B)
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.dm x df x R | PN | E | product.detail.attribute.E[5:1] | H | product.detail.attribute.K | L | Lf | L | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIMV020016012 | PVC-U system | Tvarovky | 20 x 16 x 1/2" | 16 | - | 29,5 | 40 | 30 | 15 | 14 | 16 | 21 |
| DIMV025020034 | PVC-U system | Tvarovky | 25 x 20 x 3/4" | 16 | - | 36 | 46 | 36 | 16,3 | 16 | 19 | 34 |
| DIMV032025100 | PVC-U system | Tvarovky | 32 x 25 x 1" | 16 | - | 44 | 52 | 46 | 19,1 | 19 | 22 | 58 |
| DIMV040032114 | PVC-U system | Tvarovky | 40 x 32 x 1"1/4 | 16 | - | 55 | 63 | 54 | 21,4 | 22 | 26 | 85 |
| DIMV050040112 | PVC-U system | Tvarovky | 50 x 40 x 1"1/2 | 16 | - | 62 | 73 | 65 | 21,4 | 26 | 31 | 141 |
| DIMV063050200 | PVC-U system | Tvarovky | 63 x 50 x 2" | 16 | - | 77 | 87 | 80 | 25,7 | 31 | 38 | 212 |
| DIMV075063200 | PVC-U system | Tvarovky | 75 x 63 x 2" | 16 | - | 77 | 77 | 76 | 25,7 | 38 | 44 | 202 |
