DKOAC - DIALOCK® 2-WAY DIAPHRAGM VALVE

DIALOCK® diaphragm valve with flanged monolithic body, drilled ANSI B16.5 cl. 150 #FF
The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body increases flow coefficient, reduce pressure drop and allows a sensitive and precise adjustment along the entire stroke of the shutter. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.

Další charakteristika:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Zpět Produktový list

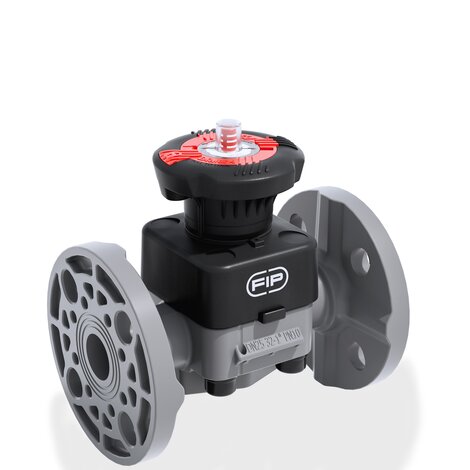

Render della valvola a membrana a 2 vie DIALOCK® DKOAC - DN 15:65 in PVC-C
DKOAC - DIALOCK® 2-WAY DIAPHRAGM VALVE
Render della valvola a membrana a 2 vie DIALOCK® DKOAC - DN 15:65 in PVC-C
DKOAC - DIALOCK® 2-WAY DIAPHRAGM VALVE

EPDM

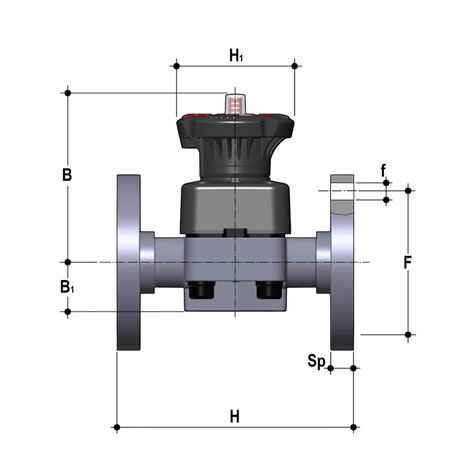

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) product.detail.attribute.f product.detail.attribute.F H H (5:1) product.detail.attribute.Sp product.detail.attribute.U g
DKOAC012E PVC-C system Armatury DK DN 15÷65 1/2" 15 10 102 25 60.3 14 108 80 13,5 4 962
DKOAC034E PVC-C system Armatury DK DN 15÷65 3/4" 20 10 105 30 70 15.7 120 80 13,5 4 1038
DKOAC100E PVC-C system Armatury DK DN 15÷65 1" 25 10 114 33 80 15.7 131 80 13,5 4 1122
DKOAC114E PVC-C system Armatury DK DN 15÷65 1" 1/4 32 10 119 30 89 15.7 162 80 14 4 1364
DKOAC112E PVC-C system Armatury DK DN 15÷65 1" 1/2 40 10 149 35 99 15.7 180 120 16 4 2299
DKOAC200E PVC-C system Armatury DK DN 15÷65 2" 50 10 172 46 121 19 210 120 16 4 3200
DKOAC212E PVC-C system Armatury DK DN 15÷65 2" 1/2 65 10 172 46 140 19 250 120 21 4 3873

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) product.detail.attribute.f product.detail.attribute.F H H (5:1) product.detail.attribute.Sp product.detail.attribute.U g
DKOAC012F PVC-C system Armatury DK DN 15÷65 1/2" 15 10 102 25 60.3 14 108 80 13,5 4 962
DKOAC034F PVC-C system Armatury DK DN 15÷65 3/4" 20 10 105 30 70 15.7 120 80 13,5 4 1038
DKOAC100F PVC-C system Armatury DK DN 15÷65 1" 25 10 114 33 80 15.7 131 80 13,5 4 1122
DKOAC114F PVC-C system Armatury DK DN 15÷65 1" 1/4 32 10 119 30 89 15.7 162 80 14 4 1364
DKOAC112F PVC-C system Armatury DK DN 15÷65 1" 1/2 40 10 149 35 99 15.7 180 120 16 4 2299
DKOAC200F PVC-C system Armatury DK DN 15÷65 2" 50 10 172 46 121 19 210 120 16 4 3200
DKOAC212F PVC-C system Armatury DK DN 15÷65 2" 1/2 65 10 172 46 140 19 250 120 21 4 3873

PTFE

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) product.detail.attribute.f product.detail.attribute.F H H (5:1) product.detail.attribute.Sp product.detail.attribute.U g
DKOAC012P PVC-C system Armatury DK DN 15÷65 1/2" 15 10 102 25 60.3 14 108 80 13,5 4 962
DKOAC034P PVC-C system Armatury DK DN 15÷65 3/4" 20 10 105 30 70 15.7 120 80 13,5 4 1038
DKOAC100P PVC-C system Armatury DK DN 15÷65 1" 25 10 114 33 80 15.7 131 80 13,5 4 1122
DKOAC114P PVC-C system Armatury DK DN 15÷65 1" 1/4 32 10 119 30 89 15.7 162 80 14 4 1364
DKOAC112P PVC-C system Armatury DK DN 15÷65 1" 1/2 40 10 149 35 99 15.7 180 120 16 4 2299
DKOAC200P PVC-C system Armatury DK DN 15÷65 2" 50 10 172 46 121 19 210 120 16 4 3200
DKOAC212P PVC-C system Armatury DK DN 15÷65 2" 1/2 65 10 172 46 140 19 250 120 21 4 3873
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
  • reduction in the tightening torque of the screws fixing the actuator to the valve body
  • reduced mechanical stress on all valve components (actuator, body and diaphragm)
  • easy to clean valve interior
  • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
  • operating torque reduction
