DKOAC/CP DA - Pneumatically actuated 2-way diaphragm valve PN 10 DN 15:65

Pneumatically actuated diaphragm valve with flanged monolithic body, drilled ANSI B16.5 cl. 150 #FF. Double-Acting function.

The DK diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body significantly increases the flow coefficient, reduces pressure drops and allows accurate adjustment over the entire shutter stroke. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic locking device that allows it to be adjusted and locked in any position.
The new compact and light piston actuator in PP-GR makes the DK/CP the ideal choice for applications requiring very frequent valve operation and a long valve lifetime.

Další charakteristika:

  • High visibility graduated optical position indicator protected by a transparent cap with a seal O-Ring.
  • Compact and light piston in PP-GR, ideal for heavy-duty applications in chemically aggressive environments with a diaphragm perimeter containment system that ensures the perfect compression of the rubber without any lateral expansion.
  • Piston in high strength IXEF®. The high quality finishing of the external surface guarantees perfect slidability over the seal and ensures a long working life without any actuator maintenance.
  • High strength stainless steel stem with double seal O-Ring. Floating pin connection between the actuator stem and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime.
  • Actuator equipped with 6 independent cartridge springs arranged radially to uniformly distribute the load on the piston.
  • Dual function main gasket. Piston seal: the gasket does not move but sits securely on the actuator cylinder instead of the piston. External seal: the gasket positioned above the threaded joint between the bonnet and cylinder ensures that the coupling is not stressed by the pressure inside the actuator.
  • Easy installation in confined spaces: compressed air inlets with G 1/4” threaded adjustable connections to enable alignment with the piping. PPGR connections prevent any risk of corrosion.
  • New valve body internal design. Substantially higher flow coefficient and lower pressure drops. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced. Adjustment linearity: the internal profiles of the valve greatly improve its characteristic curve, allowing extremely sensitive and precise adjustment along the entire length of the shutter stroke.
Zpět Produktový list

EPDM

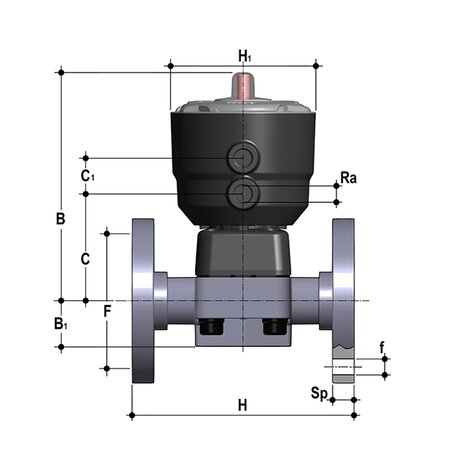

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) product.detail.attribute.F product.detail.attribute.Øf H H (5:1) product.detail.attribute.R[5:a] product.detail.attribute.U product.detail.attribute.Sp g
DKOACDA012E FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1/2" 15 10 148 25 66 24 60,30 14 108 97 1/4" 4 13.5 842
DKOACDA034E FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 3/4" 20 10 151 30 69 24 69,90 15.7 120 97 1/4" 4 13.5 923
DKOACDA100E FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 25 10 159 33 78 24 79,40 15.7 131 97 1/4" 4 13.5 1219
DKOACDA114E FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 1/4 32 10 163 30 82 24 88,90 15.7 162 97 1/4" 4 14 1443
DKOACDA112E FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 1/2 40 10 207 35 112 24 98,40 15.7 180 126 1/4" 4 16 2769
DKOACDA200E FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 2" 50 10 245 46 142 24 120,70 19 210 157 1/4" 4 16 4642
DKOACDA212E FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 2" 1/2 65 10 245 46 142 24 139,70 19 250 157 1/4" 4 21 5315

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) product.detail.attribute.F product.detail.attribute.Øf H H (5:1) product.detail.attribute.R[5:a] product.detail.attribute.U product.detail.attribute.Sp g
DKOACDA012F FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1/2" 15 10 148 25 66 24 60,30 14 108 97 1/4" 4 13.5 842
DKOACDA034F FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 3/4" 20 10 151 30 69 24 69,90 15.7 120 97 1/4" 4 13.5 923
DKOACDA100F FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 25 10 159 33 78 24 79,40 15.7 131 97 1/4" 4 13.5 1219
DKOACDA114F FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 1/4 32 10 163 30 82 24 88,90 15.7 162 97 1/4" 4 14 1443
DKOACDA112F FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 1/2 40 10 207 35 112 24 98,40 15.7 180 126 1/4" 4 16 2769
DKOACDA200F FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 2" 50 10 245 46 142 24 120,70 19 210 157 1/4" 4 16 4642
DKOACDA212F FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 2" 1/2 65 10 245 46 142 24 139,70 19 250 157 1/4" 4 21 5315

PTFE

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) product.detail.attribute.F product.detail.attribute.Øf H H (5:1) product.detail.attribute.R[5:a] product.detail.attribute.U product.detail.attribute.Sp g
DKOACDA012P FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1/2" 15 10 148 25 66 24 60,30 14 108 97 1/4" 4 13.5 842
DKOACDA034P FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 3/4" 20 10 151 30 69 24 69,90 15.7 120 97 1/4" 4 13.5 923
DKOACDA100P FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 25 10 159 33 78 24 79,40 15.7 131 97 1/4" 4 13.5 1219
DKOACDA114P FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 1/4 32 10 163 30 82 24 88,90 15.7 162 97 1/4" 4 14 1443
DKOACDA112P FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 1" 1/2 40 10 207 35 112 24 98,40 15.7 180 126 1/4" 4 16 2769
DKOACDA200P FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 2" 50 10 245 46 142 24 120,70 19 210 157 1/4" 4 16 4642
DKOACDA212P FLS Measurement Instrumentation Pneumaticky ovládané pohonované armatury DK/CP DN 15÷65 2" 1/2 65 10 245 46 142 24 139,70 19 250 157 1/4" 4 21 5315
  • Joint system for solvent welding (PVC-U and PVC-C only), for welding (PP-H and PVDF only), for threading and flanging
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal operating components in metal totally isolated from the conveyed fluid and external environment
  • Modularity of the range: only 2 hand wheels and 4 diaphragms and bonnet sizes for 7 different valve sizes
  • Non-salient hand wheel, equipped with a graduated optical indicator and protected by a transparent PVC cap with sealing O-ring.
  • Bonnet fastening screws in STAINLESS steel protected by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion
  • New flanged bodies: the new bodies, characterised by a monolithic flanged structure, are available in PVC-U, PVC-C, PP-H and PVDF. This design, free of joints between the body and flanges, greatly reduces mechanical stress and increases system performance
  • CDSA seal system (Circular Diaphragm Sealing Angle) with a uniform distribution of the shutter pressure on the sealing membrane offers the following advantages:
  • - Operating torque reduction.
  • - Reduced mechanical stress on all valve components (actuator, body and diaphragm).
  • - Low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation.
  • - Easy to clean valve interior.
