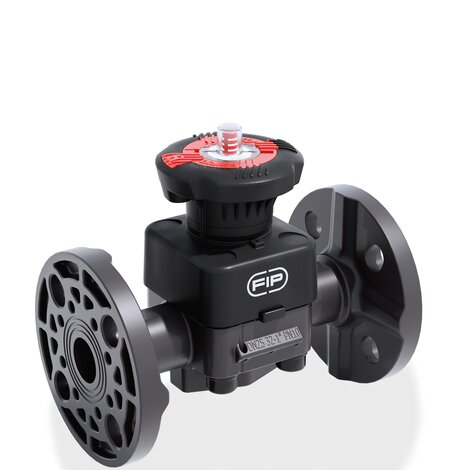

DKOV - DIALOCK® 2-way diaphragm valve

DIALOCK® diaphragm valve with flanged monolithic body, drilled PN10/16. Face to face according to EN 558-1
The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body increases flow coefficient, reduce pressure drop and allows a sensitive and precise adjustment along the entire stroke of the shutter. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.

Další charakteristika:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Zpět Produktový list

EPDM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) product.detail.attribute.F product.detail.attribute.f H H (5:1) product.detail.attribute.Sp product.detail.attribute.U g
DKOV020E PVC-U system Armatury DK DN 15÷65 20 15 10 102 25 65 14 130 80 4 13.5 925
DKOV025E PVC-U system Armatury DK DN 15÷65 25 20 10 105 30 75 14 150 80 4 13.5 990
DKOV032E PVC-U system Armatury DK DN 15÷65 32 25 10 114 33 85 14 160 80 4 13.5 1054
DKOV040E PVC-U system Armatury DK DN 15÷65 40 32 10 119 30 100 18 180 80 4 14 1272
DKOV050E PVC-U system Armatury DK DN 15÷65 50 40 10 149 35 110 18 200 120 4 16 2164
DKOV063E PVC-U system Armatury DK DN 15÷65 63 50 10 172 46 125 18 230 120 4 16 3009
DKOV075E PVC-U system Armatury DK DN 15÷65 75 65 10 172 46 145 18 290 120 4 21 3610

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) product.detail.attribute.F product.detail.attribute.f H H (5:1) product.detail.attribute.Sp product.detail.attribute.U g
DKOV020F PVC-U system Armatury DK DN 15÷65 20 15 10 102 25 65 14 130 80 4 13.5 925
DKOV025F PVC-U system Armatury DK DN 15÷65 25 20 10 105 30 75 14 150 80 4 13.5 990
DKOV032F PVC-U system Armatury DK DN 15÷65 32 25 10 114 33 85 14 160 80 4 13.5 1054
DKOV040F PVC-U system Armatury DK DN 15÷65 40 32 10 119 30 100 18 180 80 4 14 1272
DKOV050F PVC-U system Armatury DK DN 15÷65 50 40 10 149 35 110 18 200 120 4 16 2164
DKOV063F PVC-U system Armatury DK DN 15÷65 63 50 10 172 46 125 18 230 120 4 16 3009
DKOV075F PVC-U system Armatury DK DN 15÷65 75 65 10 172 46 145 18 290 120 4 21 3610

PTFE

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) product.detail.attribute.F product.detail.attribute.f H H (5:1) product.detail.attribute.Sp product.detail.attribute.U g
DKOV032P PVC-U system Armatury DK DN 15÷65 32 25 10 114 33 85 14 160 80 4 13.5 1054
DKOV040P PVC-U system Armatury DK DN 15÷65 40 32 10 119 30 100 18 180 80 4 14 1272
DKOV050P PVC-U system Armatury DK DN 15÷65 50 40 10 149 35 110 18 200 120 4 16 2164
DKOV063P PVC-U system Armatury DK DN 15÷65 63 50 10 172 46 125 18 230 120 4 16 3009
DKOV075P PVC-U system Armatury DK DN 15÷65 75 65 10 172 46 145 18 290 120 4 21 3610
DKOV020P PVC-U system Armatury DK DN 15÷65 20 15 10 102 25 65 14 130 80 4 13.5 925
DKOV025P PVC-U system Armatury DK DN 15÷65 25 20 10 105 30 75 14 150 80 4 13.5 990
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
  • reduction in the tightening torque of the screws fixing the actuator to the valve body
  • reduced mechanical stress on all valve components (actuator, body and diaphragm)
  • easy to clean valve interior
  • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
  • operating torque reduction
