F3.00.W.XX
PADDLEWHEEL FLOW SENSOR

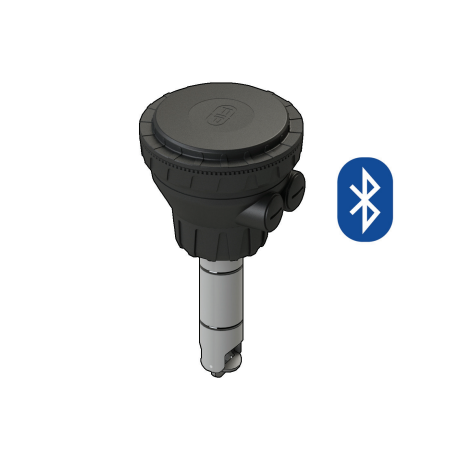

Paddlewheel Wireless Flow Sensor (B.L.E.)
The simple and reliable
paddlewheel flow sensor type
F3.00 is designed for use with
every kind of solid-free liquids.
The sensor can measure
flow from 0.15 m/s (0.5 ft/s)
producing a frequency output
signal highly repeatable.
A rugged construction and a
proven technology guarantee
exceptional performances
with little or no maintenance
required.
A dedicated electronic, with a
push-pull output, is available
for a safe connection to any
kind of PLC/Instrument digital
input.
A specially designed family of
fittings ensures an easy and
quick installation into all pipe
materials in sizes from DN15
to DN600 (0.5” to 24”).
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.family | Série | product.detail.attribute.Version | product.detail.attribute.Power supply | Délka | product.detail.attribute.Main Wetted Materials | product.detail.attribute.Enclosure | product.detail.attribute.Flow Rate Range | product.detail.attribute.Weight (gr.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F3.00.W.13 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L0 | C-PVC $ EPDM | IP65 | From 0,15 to 8 m/s* | 750 |
| F3.00.W.14 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L0 | C-PVC $ FKM | IP65 | From 0,15 to 8 m/s* | 750 |
| F3.00.W.15 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L1 | C-PVC $ EPDM | IP65 | From 0,15 to 8 m/s* | 800 |
| F3.00.W.16 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L1 | C-PVC $ FKM | IP65 | From 0,15 to 8 m/s* | 800 |
| F3.00.W.17 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L0 | PVDF $ EPDM | IP65 | From 0,15 to 8 m/s* | 750 |
| F3.00.W.18 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L0 | PVDF $ FKM | IP65 | From 0,15 to 8 m/s* | 750 |
| F3.00.W.19 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L1 | PVDF $ EPDM | IP65 | From 0,15 to 8 m/s* | 800 |
| F3.00.W.20 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L1 | PVDF $ FKM | IP65 | From 0,15 to 8 m/s* | 800 |
| F3.00.W.21 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L0 | 316L SS $ EPDM | IP65 | From 0,15 to 8 m/s* | 950 |
| F3.00.W.22 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L0 | 316L SS $ FKM | IP65 | From 0,15 to 8 m/s* | 950 |
| F3.00.W.23 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L1 | 316L SS $ EPDM | IP65 | From 0,15 to 8 m/s* | 1000 |
| F3.00.W.24 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | Wireless | Battery | L1 | 316L SS $ FKM | IP65 | From 0,15 to 8 m/s* | 1000 |
- APPLICATIONS • Water treatment and regeneration • Industrial wastewater treatment and recovery • Textile finishing • Water distribution • Processing and manufacturing industry • Filtration systems • Chemical production • Liquid delivery systems • Cooling water monitoring • Heat Exchangers • Swimming pools • Pump protection MAIN FEATURES • C-PVC, PVDF or Stainless Steel sensor body • Two sensor lenghts to cover from DN15 up to DN600 • Easy insertion system • IP65 or IP68 protection class • Measurement range over 50:1 • High chemical resistance • Version for battery powered system • Push-Pull output for universal electrical connection
