F6.61.XX
Hot Tap Magmeter Flow Sensor
Hot Tap Magmeter Flow Sensor

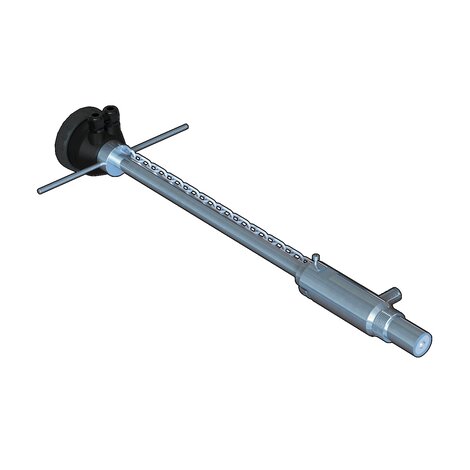

FLS F6.61 Hot Tap
Insertion Magmeter Flow
Sensor is a flowmeter without
moving mechanical parts
which can be applied for the
measurement of dirty liquids
so long as they are conductive
and homogeneous. The sensor
can provide three different
options: frequency output to
be connected to FLS flow
monitors, 4-20 mA output for
long distance transmission
and PLC connection and the
new volume pulse output freely
settable. FLS F6.61 Insertion
Magmeter is provided with an
USB interface and a dedicated
software (freely downloadable
from FLS web site) which
allows to easily set by a PC
all parameters according
to specific installation
requirements.
The sensor can be assembled
in a wide dynamic range of
pressurized pipe sizes from
DN50 (2”) to DN900 (36”)
using a standard clamp saddle
and an isolation ball valve
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.family | Série | product.detail.attribute.Version | product.detail.attribute.Power supply | Délka | product.detail.attribute.Main Wetted Materials | product.detail.attribute.Enclosure | product.detail.attribute.Flow Rate Range | product.detail.attribute.Weight (gr.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F6.61.01 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Flow sensors | Lopatkové a elektromagnetické senzory průtoku | HOT TAP INSERTION INSTALLATION | 12 - 24 VCC | 615 mm | 316L SS $ PVDF $ AISI 316L | IP65 | Da 0,05 a 8 m/s* | 6000 |
- APPLICATIONS • Water distribution • Leak Detection or Monitoring • Raw water intake • Water and waste water treatment • Ground water remediation • Irrigation MAIN FEATURES • Adjustable sensor position • Hot-Tap installation • Operating parameters settable by PC interface • Pressure intake • Standard 1 ¼” BSP process connection • No moving parts, no wear, maintenance free • Flow Rate Range settable from 0.05 to 8 m/s (0.15 to 25 ft/s) • Accurate measurement of dirty liquids • 4-20 mA, frequency or volume pulse outputs • Bi-directional flow measurement selectable
