GIV

SOLVENT WELD FITTINGS - EQUAL SOCKET

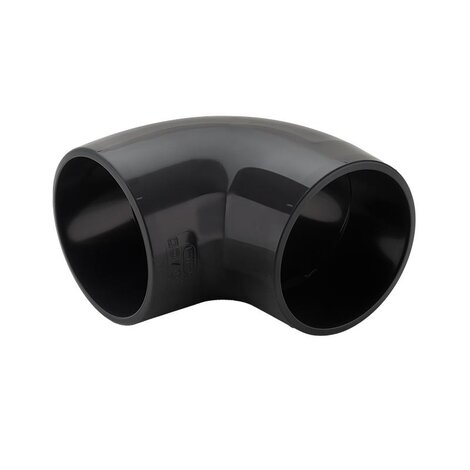

90° elbow with solvent weld sockets (fig. A)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
Zpět Produktový list
Immagine del raccordo per incollaggio GIV (Fig. A)
Disegno tecnico del raccordo per incollaggio GIV (Fig. A)
Immagine del raccordo per incollaggio GIV (Fig. A)
Disegno tecnico del raccordo per incollaggio GIV (Fig. A)
Objednací číslo Materiál Kategorie d PN E L Z g product.detail.attribute.
GIV012 PVC-U system Tvarovky 12 16 17 12 8 4 -
GIV016 PVC-U system Tvarovky 16 16 22 14 9 11 IFH
GIV020 PVC-U system Tvarovky 20 16 26 16 12 15 IFH
GIV025 PVC-U system Tvarovky 25 16 32 19 15 30 IFH
GIV032 PVC-U system Tvarovky 32 16 40 22 19 50 IFH
GIV040 PVC-U system Tvarovky 40 16 50 26 22 90 IFH
GIV050 PVC-U system Tvarovky 50 16 59 31 27,5 160 IFH
GIV063 PVC-U system Tvarovky 63 16 76 38 33,5 290 IFH
GIV075 PVC-U system Tvarovky 75 16 91 44 41 450 IF
GIV090 PVC-U system Tvarovky 90 16 108 51 47,5 680 IF
GIV110 PVC-U system Tvarovky 110 16 130 61 61 1180 IF
GIV125 PVC-U system Tvarovky 125 16 148 69 64 1650 IF
GIV140 PVC-U system Tvarovky 140 16 163 76 77 2080 IF
GIV160 PVC-U system Tvarovky 160 16 183 87 82 2820 IF
GIV180 PVC-U system Tvarovky 180 10 215 96 94 5200 -
GIV200 PVC-U system Tvarovky *200 10 229 106 100 5360 -
GIV225 PVC-U system Tvarovky *225 10 249 119,5 114,5 5670 -
