FITTINGS FOR BUTT WELDING - EQUAL ENDS

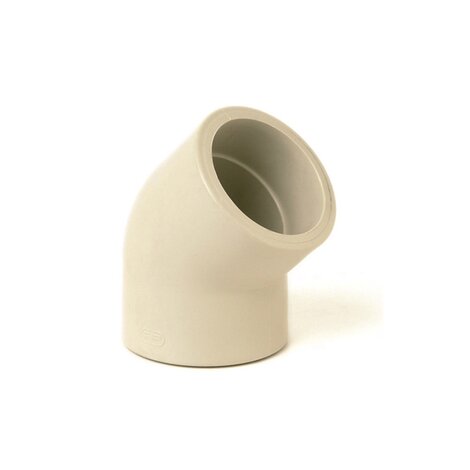

45° bend, long spigot for butt welding SDR 11 - S 5
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

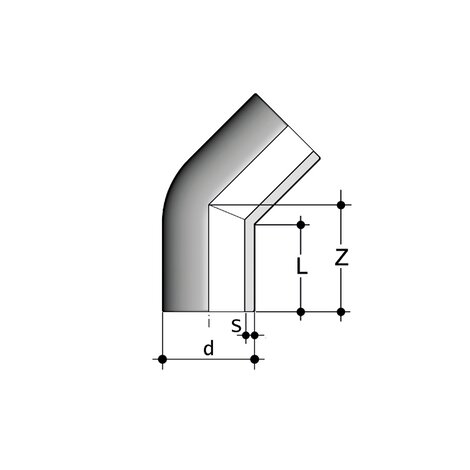

Objednací číslo | Materiál | Kategorie | d | L | s | Z | g |
---|---|---|---|---|---|---|---|
HBM11020 | PP-H system | Tvarovky | 20 | 52 | 72 | 1,9 | 19 |
HBM11025 | PP-H system | Tvarovky | 25 | 57 | 76 | 2,3 | 30 |
HBM11032 | PP-H system | Tvarovky | 32 | 71 | 90 | 2,9 | 56 |
HBM11040 | PP-H system | Tvarovky | 40 | 73 | 95 | 3,7 | 88 |
HBM11050 | PP-H system | Tvarovky | 50 | 62 | 76 | 4,6 | 110 |
HBM11063 | PP-H system | Tvarovky | 63 | 66 | 88 | 5,8 | 205 |
HBM11075 | PP-H system | Tvarovky | 75 | 71 | 90 | 6,8 | 290 |
HBM11090 | PP-H system | Tvarovky | 90 | 83 | 105 | 8,2 | 460 |
HBM11110 | PP-H system | Tvarovky | 110 | 93 | 121 | 10 | 785 |
HBM11125 | PP-H system | Tvarovky | 125 | 98 | 137 | 11,4 | 1130 |
HBM11140 | PP-H system | Tvarovky | 140 | 122 | 168 | 12,7 | 1685 |
HBM11160 | PP-H system | Tvarovky | 160 | 143 | 190 | 14,6 | 2550 |
HBM11180 | PP-H system | Tvarovky | 180 | 141 | 196 | 16,4 | 3285 |
HBM11200 | PP-H system | Tvarovky | 200 | 153 | 207 | 18,2 | 4540 |
HBM11225 | PP-H system | Tvarovky | 225 | 153 | 210 | 20,5 | 5750 |
HBM11250 | PP-H system | Tvarovky | 250 | 134 | 220 | 22,7 | 7875 |
HBM11280 | PP-H system | Tvarovky | 280 | 143 | 227 | 25,4 | 10060 |
HBM11315 | PP-H system | Tvarovky | 315 | 155 | 250 | 28,6 | 13675 |
