JFV
ADAPTOR FITTINGS - TANK CONNECTORS

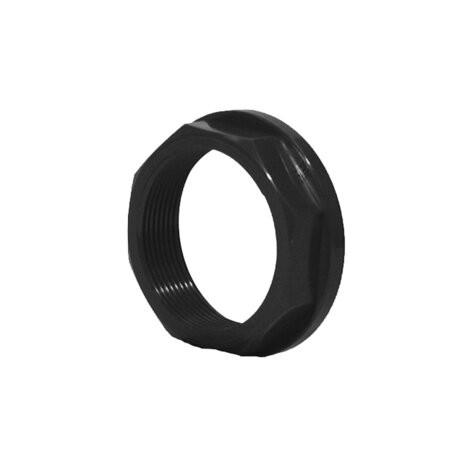

Back nut with BSP thread (used on LIV and LIFV)
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.

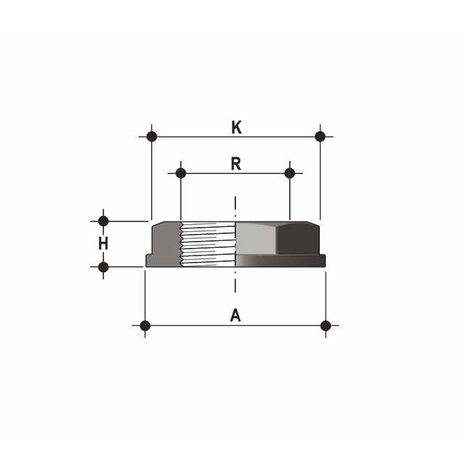

| Objednací číslo | Materiál | Kategorie | product.detail.attribute.R | PN | product.detail.attribute.A | H | product.detail.attribute.K | g |
|---|---|---|---|---|---|---|---|---|
| 1RNU220000 | PVC-U system | Tvarovky | 1/2" | 16 | 38 | 13 | 28 | 11 |
| 1RNU225000 | PVC-U system | Tvarovky | 3/4" | 16 | 44 | 13,5 | 33 | 14 |
| 1RNU232000 | PVC-U system | Tvarovky | 1" | 16 | 58 | 16 | 46 | 31 |
| 1RNU240000 | PVC-U system | Tvarovky | 1"1/4 | 16 | 62 | 18 | 50 | 32 |
| 1RNU250000 | PVC-U system | Tvarovky | 1"1/2 | 16 | 76 | 19 | 60 | 52 |
| 1RNU263000 | PVC-U system | Tvarovky | 2" | 16 | 92 | 21 | 79 | 84 |
