KIFC
ADAPTOR FITTINGS

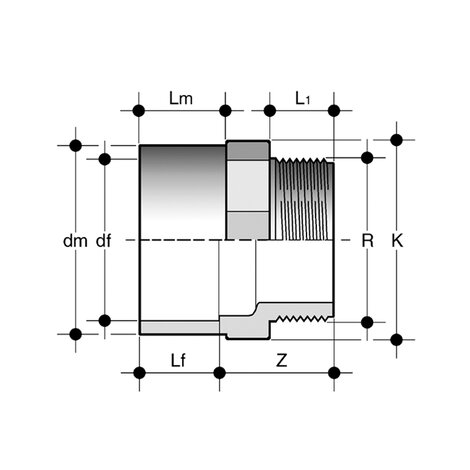

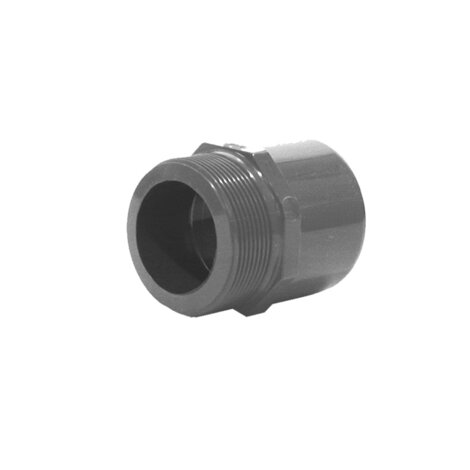

Double adaptor with solvent weld socket df, solvent weld spigot dm and BSP threaded male end R
Series of fittings designed for conveying fluids under pressure with threaded and cold chemical solvent weld jointing systems (solvent welding) using suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.dm x df x R | PN | product.detail.attribute.K | L | Lf | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| KIFC020016038 | PVC-C system | Tvarovky | 20 x 16 x 3/8" | 16 | 24 | 11,4 | 14 | 16 | 25,5 | 7 |
| KIFC025020012 | PVC-C system | Tvarovky | 25 x 20 x 1/2" | 16 | 30 | 15 | 16 | 19 | 30 | 16 |
| KIFC032025034 | PVC-C system | Tvarovky | 32 x 25 x 3/4" | 16 | 34 | 16,3 | 19 | 22 | 27,5 | 23 |
| KIFC040032100 | PVC-C system | Tvarovky | 40 x 32 x 1" | 16 | 42 | 19,1 | 22 | 26 | 32 | 38 |
| KIFC050040114 | PVC-C system | Tvarovky | 50 x 40 x 1"1/4 | 16 | 52 | 21,4 | 26 | 31 | 35,5 | 65 |
| KIFC063050112 | PVC-C system | Tvarovky | 63 x 50 x 1"1/2 | 16 | 65 | 21,4 | 31 | 38 | 39,5 | 113 |
| KIFC075063200 | PVC-C system | Tvarovky | 75 x 63 x 2" | 16 | 75 | 25,7 | 38 | 44 | 41 | 158 |
