M9.00.PX - M9.00.WX

2-Wires Flow Monitor and Transmitter

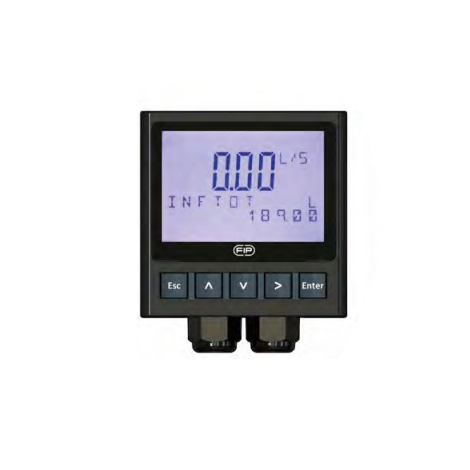

FLS M9.00 is a powerful flow monitor based on 2-wire technology designed to convert the frequency signal of FLS flow sensors into a flow rate. M9.00 is equipped with a wide 4” display which shows measured values clearly. Moreover the standard backlight improves further the display visibility. The first procedure will grant a easy set up of main parameters. A flow rate reference can be used for a recalibration or a alignment through a intuitive “in-line calibration”. A 2 wires 4-20mA output combined with a solid state relay allow to remote instant flow rate as well as an alarm.

Zpět Produktový list

Objednací číslo	Materiál	Kategorie	Série	product.detail.attribute.Mounting	product.detail.attribute.Power supply	product.detail.attribute.Wire power Technology	product.detail.attribute.Sensor Input	product.detail.attribute.Output	product.detail.attribute.Weight (gr.)
M9.00.P1	FLS Measurement Instrumentation	FLS systém pro měření a regulaci	Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti	Panel	12 - 24 VCC	2 wire	Flow (Frequency)	1(4-20mA) $ 1(S.S.R.)	500
M9.00.W1	FLS Measurement Instrumentation	FLS systém pro měření a regulaci	Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti	Wall	12 - 24 VCC	2 wire	Flow (Frequency)	1(4-20mA) $ 1(S.S.R.)	550
M9.00.W2	FLS Measurement Instrumentation	FLS systém pro měření a regulaci	Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti	Wall	110 - 230 VCA	2 wire	Flow (Frequency)	1(4-20mA) $ 1(S.S.R.)	650

APPLICATIONS • Water treatment systems • Industrial waste water treatment and recovery • Water distribution • Filtration systems • Swimming pools & SPA • Irrigation & Fertigation • Leak detection MAIN FEATURES • Wide display • Bright backlight • Installation flexibility • Solid State Relays for programmable alarms • Multilanguage menu • USB port for software updating
