M9.00.XX
2-Wires Flow Monitor and Transmitter
2-Wires Flow Monitor and Transmitter Field mount

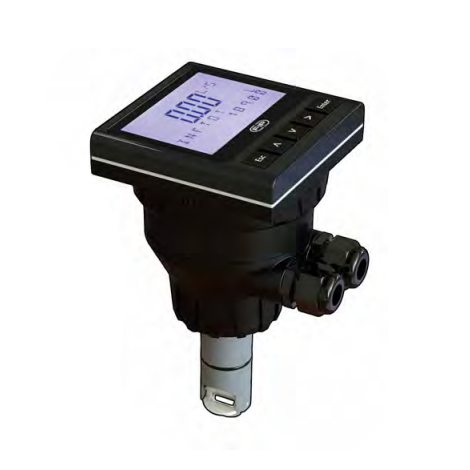

FLS M9.00 is a powerful flow monitor based on 2-wire technology designed to convert the frequency signal of FLS flow sensors into a flow rate. M9.00 is equipped with a wide 4” display which shows measured values clearly. Moreover the standard backlight improves further the display visibility. The first procedure will grant a easy set up of main parameters. A flow rate reference can be used for a recalibration or a alignment through a intuitive “in-line calibration”. A 2 wires 4-20mA output combined with a solid state relay allow to remote instant flow rate as well as an alarm.
Další charakteristika:
• Wide display • Bright backlight • Installation flexibility • Solid State Relays for programmable alarms • Multilanguage menu • USB port for software updating
| Objednací číslo | Materiál | Kategorie | Série | product.detail.attribute.Power supply | product.detail.attribute.Wire power Technology | product.detail.attribute.Sensor Input | product.detail.attribute.Output | Délka | product.detail.attribute.Main Wetted Materials |
|---|---|---|---|---|---|---|---|---|---|
| M9.00.01 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L0 | C-PVC $ EPDM |
| M9.00.02 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L0 | C-PVC $ FKM |
| M9.00.03 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L1 | C-PVC $ EPDM |
| M9.00.04 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L1 | C-PVC $ FKM |
| M9.00.05 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L0 | PVDF $ EPDM |
| M9.00.06 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L0 | PVDF $ FKM |
| M9.00.07 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L1 | PVDF $ EPDM |
| M9.00.08 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L1 | PVDF $ FKM |
| M9.00.09 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L0 | 316L SS $ EPDM |
| M9.00.10 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L0 | 316L SS $ FKM |
| M9.00.11 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L1 | 316L SS $ EPDM |
| M9.00.12 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | 12 - 24 VCC | 2 wire | Flow (Frequency) | 1*(4-20mA) $ 1*(S.S.R.) | L1 | 316L SS $ FKM |
- APPLICATIONS • Water treatment systems • Industrial waste water treatment and recovery • Water distribution • Filtration systems • Swimming pools & SPA • Irrigation & Fertigation • Leak detection
