M9.20.PX - M9.20.WX
Battery Powered Flow Monitor
Battery Powered Flow Monitor
The new M9.20 is a smart
battery powered flow monitor
designed to convert
the frequency signal of FLS
sensors into a flow rate.
M9.20 is equipped by a long
life lithium battery which
powers the sensor also.

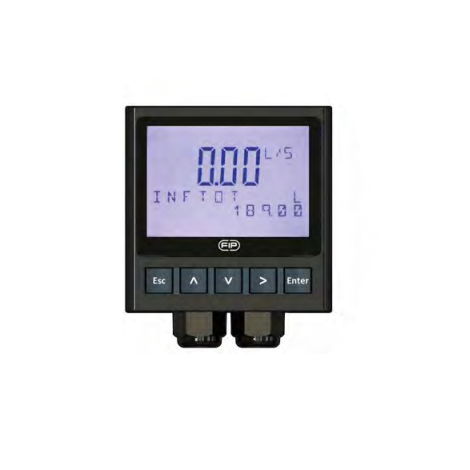

A wide 4” display is used to
show measured values clearly.
A first procedure will grant
a easy set up of main
parameters. A flow rate
reference can be used for a
recalibration or a alignment
through a intuitive
“in-line calibration”.
A safe icon alerts when it’s
time to replace battery and
instrument stores all main
parameters automatically. A
customizable string allows
to tailor easily the view level.
M9.20 is equipped with a USB
port which allows an easy
update of the software by the
end users.
| Objednací číslo | Materiál | Kategorie | Série | product.detail.attribute.Mounting | product.detail.attribute.Power supply | product.detail.attribute.Sensor Input |
|---|---|---|---|---|---|---|
| M9.20.P1 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | Panel | Battery Powered | Flow (Frequency) |
| M9.20.W1 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | Wall | Battery Powered | Flow (Frequency) |
- APPLICATIONS • Remote distribution system • Mobile monitoring system • Irrigation & Fertigation • groundwater remediation • swimming pool & SPA • Liquid delivery system MAIN FEATURES • Wide display • long-lasting battery • installation flexibility • Multilanguage menu • No data loss at battery replacement • USB port for software updating
