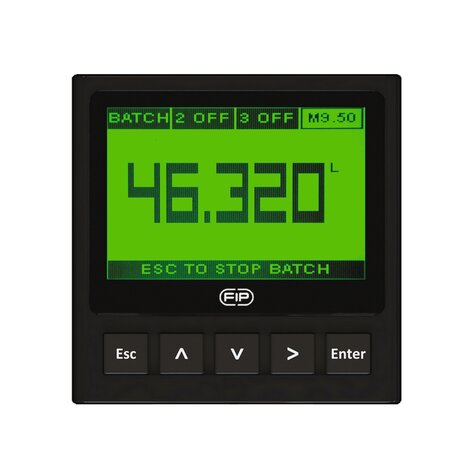

M9.50.PX - M9.50.WX
Batch Controller
FLS M9.50 is an electronic device dedicated
to control accurately batching
or blending of different
liquids. A 4” wide full graphic
display shows measured
values clearly and a lot of
other useful information.
Moreover, thanking to a
multicolor display plus a
powerful backlight, batching
status can be determined
easily from afar also. A
tutorial software guarantees
a mistake-proof and fast set
up of every settings. Few
advanced options are available
to increase precision as well
as timing of batch. Possibility
of setting different volumes
(up to 10 batches) correlated
to specific calibration factors
maximizes system flexibility
guaranteeing highest level of
accuracy. A proper package of
outputs grants to control and
to monitor the batching system
remotely. The USB port on the
rear part allows the upgrade of
software offering a wide range
of customization services both
standard and on request.
Další charakteristika:
MAIN FEATURES
• Wide full graphic display
• Multicolor backlight visualization
• Help on board
• External start, stop and resume
• Intuitive batch volumes setting
• Two stage shutdown control
• Overrun compensation and alarm
• Missing signal alarm
• USB port for software upgrading
| Objednací číslo | Materiál | Kategorie | Série | product.detail.attribute.Mounting | product.detail.attribute.Power supply | product.detail.attribute.Sensor Input | product.detail.attribute.Output |
|---|---|---|---|---|---|---|---|
| M9.50.P1 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | Panel | 12 - 24 VCC | Flow (Frequency) | 2*(S.S.R.) $ 2*(mech. relay) |
| M9.50.W1 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | Wall | 12 - 24 VCC | Flow (Frequency) | 2*(S.S.R.) $ 2*(mech. relay) |
| M9.50.W2 | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | Monitory pro měření a regulaci průtoku, pH/ORP a vodivosti | Wall | 110 - 230 VCA | Flow (Frequency) | 2*(S.S.R.) $ 2*(mech. relay) |
APPLICATIONS
• Batch processes
• Chemical additions
• Filling processes
• Blending applications
• Dosing system
• Bottling processes
