MIF
FITTINGS FOR SOCKET WELDING - EQUAL SOCKET

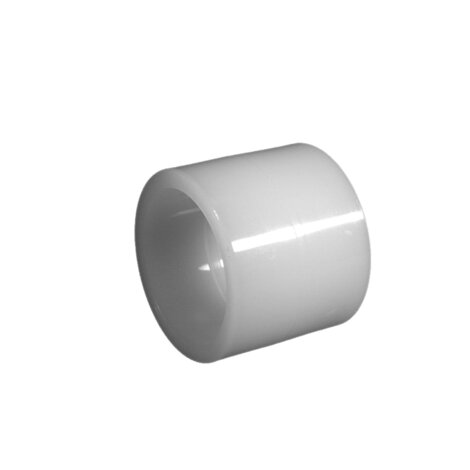

Double socket for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

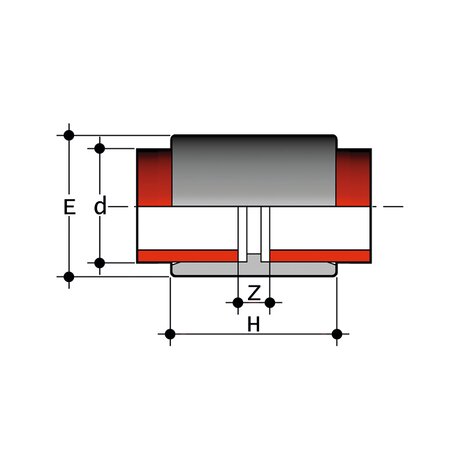

| Objednací číslo | Materiál | Kategorie | d | PN | E | H | Z | g |
|---|---|---|---|---|---|---|---|---|
| MIF020 | PVDF system | Tvarovky | 20 | 16 | 28 | 36 | 7 | 20 |
| MIF025 | PVDF system | Tvarovky | 25 | 16 | 33 | 40 | 8 | 28 |
| MIF032 | PVDF system | Tvarovky | 32 | 16 | 42 | 44 | 8 | 48 |
| MIF040 | PVDF system | Tvarovky | 40 | 16 | 51 | 49 | 8 | 70 |
| MIF050 | PVDF system | Tvarovky | 50 | 16 | 63 | 55 | 8 | 120 |
| MIF063 | PVDF system | Tvarovky | 63 | 16 | 77 | 64 | 9 | 185 |
| MIF075 | PVDF system | Tvarovky | 75 | 16 | 90 | 72 | 10 | 275 |
| MIF090 | PVDF system | Tvarovky | 90 | 16 | 108 | 79 | 8 | 415 |
| MIF110 | PVDF system | Tvarovky | 110 | 16 | 131 | 84 | 11 | 710 |
