SOLVENT WELD FITTINGS - REDUCERS
Reducer: solvent weld double socket (fig. A)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
Zpět Produktový list

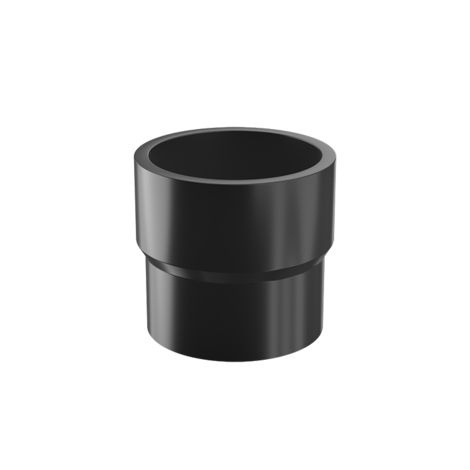

Immagine del raccordo per incollaggio - riduzioni MRIV (Fig. A)

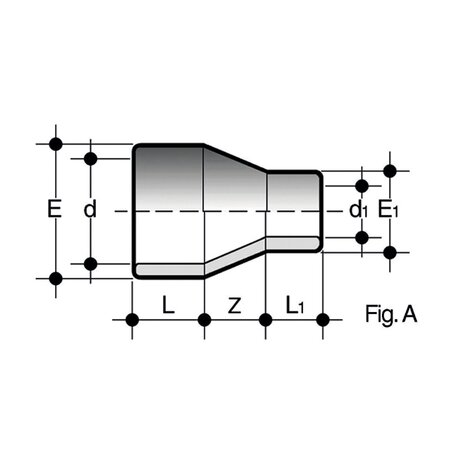

Disegno tecnico del raccordo per incollaggio - riduzioni MRIV fig. A
Immagine del raccordo per incollaggio - riduzioni MRIV (Fig. A)
Disegno tecnico del raccordo per incollaggio - riduzioni MRIV fig. A
Objednací číslo Materiál Kategorie product.detail.attribute.d x d[5:1] PN E product.detail.attribute.E[5:1] product.detail.attribute.K L L Z g
MRIV180125 PVC-U system Tvarovky *180 x 125 10 214 154 - 95 68 48,8 2700
MRIV180140 PVC-U system Tvarovky *180 x 140 10 214 170 - 95 76 35 2700
MRIV180160 PVC-U system Tvarovky *180 x 160 10 214 190 - 95 86 17 2800
MRIV200110 PVC-U system Tvarovky *200 x 110 10 234 138 - 102 61 78 3100
MRIV200125 PVC-U system Tvarovky *200 x 125 10 234 154 - 102 68 65 3100
MRIV200140 PVC-U system Tvarovky *200 x 140 10 234 170 - 102 76 52 3200
MRIV200160 PVC-U system Tvarovky *200 x 160 10 234 190 - 102 86 35 3200
MRIV200180 PVC-U system Tvarovky *200 x 180 10 234 213 - 102 95 17 3300
MRIV225110 PVC-U system Tvarovky *225 x 110 10 258 138 - 103 62 100 4000
MRIV225140 PVC-U system Tvarovky *225 x 140 10 258 170 - 103 76 74 3800
MRIV225160 PVC-U system Tvarovky *225 x 160 10 258 190 - 103 86 57 4000
MRIV225180 PVC-U system Tvarovky *225 x 180 10 258 214 - 103 95 40 3500
MRIV225200 PVC-U system Tvarovky *225 x 200 10 258 234 - 103 102 22 3500
MRIV250110 PVC-U system Tvarovky *250 x 110 10 283 138 - 105 62 122 4500
MRIV250125 PVC-U system Tvarovky *250 x 125 10 283 154 - 105 68 108 4700
MRIV250140 PVC-U system Tvarovky *250 x 140 10 283 170 - 105 76 96 4600
MRIV250160 PVC-U system Tvarovky *250 x 160 10 283 190 - 105 86 78 4700
MRIV250180 PVC-U system Tvarovky *250 x 180 10 283 214 - 105 95 62 4600
MRIV250200 PVC-U system Tvarovky *250 x 200 10 283 234 - 105 102 44 4500
MRIV250225 PVC-U system Tvarovky *250 x 225 10 283 258 - 105 103 22 4900
MRIV280110 PVC-U system Tvarovky *280 x 110 10 317 138 - 101 62 150 5400
MRIV280125 PVC-U system Tvarovky *280 x 125 10 317 154 - 101 68 136 5400
MRIV280140 PVC-U system Tvarovky *280 x 140 10 317 170 - 101 76 123 5400
MRIV280160 PVC-U system Tvarovky *280 x 160 10 317 190 - 101 86 105 5700
MRIV280180 PVC-U system Tvarovky *280 x 180 10 317 214 - 101 95 87 5700
MRIV280225 PVC-U system Tvarovky *280 x 225 10 317 258 - 101 103 47 5500
MRIV280250 PVC-U system Tvarovky *280 x 250 10 317 283 - 101 105 26 5400
MRIV315160 PVC-U system Tvarovky *315 x 160 8 355 190 - 105 86 135 6400
MRIV315180 PVC-U system Tvarovky *315 x 180 8 355 214 - 105 95 117 6600
MRIV315200 PVC-U system Tvarovky *315 x 200 8 355 234 - 105 102 100 6800
MRIV315225 PVC-U system Tvarovky *315 x 225 8 355 258 - 105 103 79 7200
MRIV315250 PVC-U system Tvarovky *315 x 250 8 355 283 - 105 105 57 6800
MRIV315280 PVC-U system Tvarovky *315 x 280 8 355 317 - 105 101 31 7100
MRIV355315 PVC-U system Tvarovky *355 x 315 5 394 355 - 105 105 35 7500
MRIV400315 PVC-U system Tvarovky *400 x 315 5 435 355 - 105 105 75 9500
MRIV400355 PVC-U system Tvarovky *400 x 355 5 435 394 - 105 105 40 9000
