FLANGES - ISO-DIN SERIES.

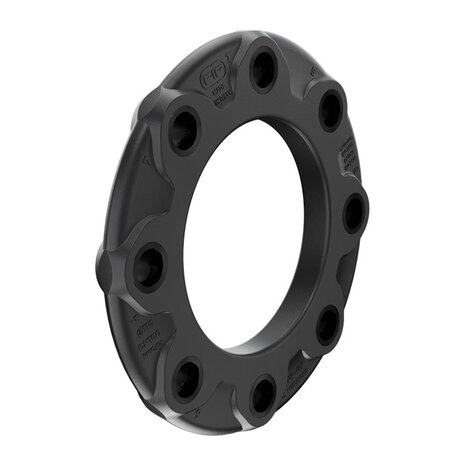

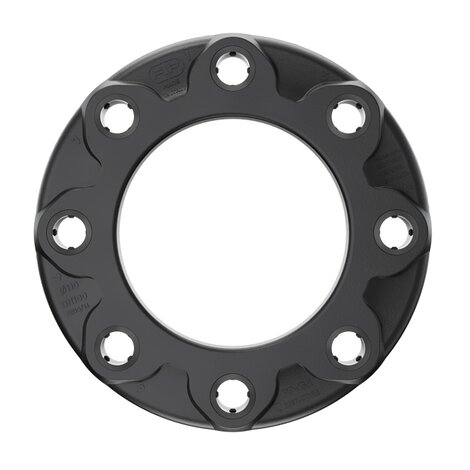

Steel core backing ring, PP/FRP coated, according to EN/ISO/DIN for stub QRNF (Drilling: PN 10/16), for stubs QRV, QPV (Drilling: PN 10/16 up to DN 150; PN 10 from DN 200), for stubs QRC (Drilled PN 10/16 up to DN 150) and for stub QRNM (Drilling: PN 10/16).

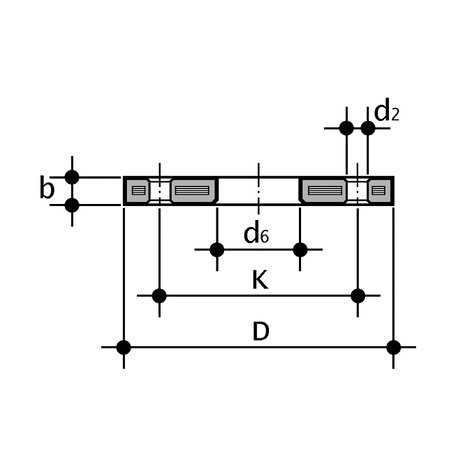

| Objednací číslo | Materiál | Kategorie | d | DN | product.detail.attribute.*PMA (bar) | product.detail.attribute.b | D | product.detail.attribute.d[5:2] | product.detail.attribute.d[5:6] | product.detail.attribute.K | M | product.detail.attribute.**(Nm) | product.detail.attribute.n | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ODT020 | FLS Measurement Instrumentation | Příruby | 20 | 15 | 16 | 12 | 95 | 14 | 28 | 65 | M12 | 15 | 4 | 290 |
| ODT025 | FLS Measurement Instrumentation | Příruby | 25 | 20 | 16 | 14 | 105 | 14 | 34 | 75 | M12 | 15 | 4 | 410 |
| ODT032 | FLS Measurement Instrumentation | Příruby | 32 | 25 | 16 | 16 | 115 | 14 | 42 | 85 | M12 | 15 | 4 | 610 |
| ODT040 | FLS Measurement Instrumentation | Příruby | 40 | 32 | 16 | 16 | 140 | 18 | 51 | 100 | M16 | 20 | 4 | 880 |
| ODT050 | FLS Measurement Instrumentation | Příruby | 50 | 40 | 16 | 16 | 150 | 18 | 62 | 110 | M16 | 30 | 4 | 810 |
| ODT063 | FLS Measurement Instrumentation | Příruby | 63 | 50 | 16 | 19 | 165 | 18 | 78 | 125 | M16 | 35 | 4 | 940 |
| ODT075 | FLS Measurement Instrumentation | Příruby | 75 | 65 | 16 | 19 | 188 | 18 | 92 | 145 | M16 | 40 | 4 | 1210 |
| ODT090 | FLS Measurement Instrumentation | Příruby | **90 | 80 | 16 | 21 | 200 | 18 | 109 | 160 | M16 | 40 | 8 | 1480 |
| ODT110 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT125 | FLS Measurement Instrumentation | Příruby | ***125 | 100 | 16 | 20 | 220 | 18 | 135 | 180 | M16 | 45 | 8 | 1570 |
| ODT140 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT160 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT180 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT200 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT225 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT250 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT280 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
| ODT315 | FLS Measurement Instrumentation | Příruby | - | - | - | - | - | - | - | - | - | - | - | - |
