PH870CDTCXX
RYTON BODY FLAT SURFACE ELECTRODE

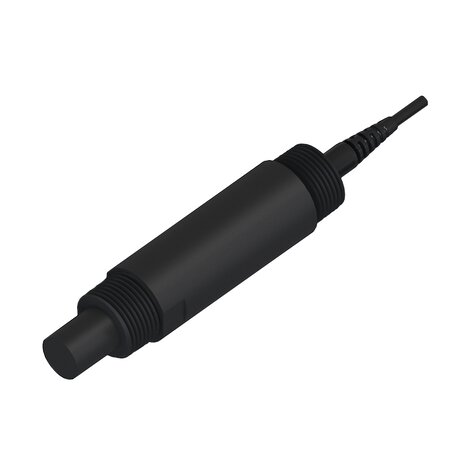

Ryton double junction flat surface pH electrode with Pt1000
The new pH electrodes line
870 combines a tough ryton
body with auto-cleaning flat
pH surface and with a reliable
Pt1000 for an accurate
measurement in dirty liquid as
well as in aggressive solutions.
In addiction a wide junction
improves performances in
presence of suspended solids.
The new 870 electrodes allow
a direct installation by their
¾” threaded included in the
body: in-line installation using
the threads on the electrode
bottom or submersible
installation using the threads
on the electrode head.
Availability of specific versions
for special applications as:
horizontal mounting (-HM),
low conductive samples (-LC),
aggressive solutions (HF<2%)/
low values of pH (-HF).
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.family | Série | product.detail.attribute.Features | product.detail.attribute.Applications/ Operative Range | product.detail.attribute.Cable** | product.detail.attribute.Connection | product.detail.attribute.Installation | product.detail.attribute.Weight (gr.) |
|---|---|---|---|---|---|---|---|---|---|---|
| PH870CDTC | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | ph / ORP / pressure-level Electrodes | pH/ORP elektrody s tělem z epoxydu, C-PVC, rytonu nebo skla | Pt100 included | pH 0-14* | Not required | 5 m (16,5 ft.) | 3/4" NPT | 250 |
| PH870CDTCHF | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | ph / ORP / pressure-level Electrodes | pH/ORP elektrody s tělem z epoxydu, C-PVC, rytonu nebo skla | Pt100 included | 0-14 pH (0-12,3 pH without Na+ error)/ Presence of HF (max 2%) | Not required | 5 m (16,5 ft.) | 3/4" NPT | 250 |
| PH870CDTCHM | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | ph / ORP / pressure-level Electrodes | pH/ORP elektrody s tělem z epoxydu, C-PVC, rytonu nebo skla | Pt100 included | 0-14 pH (0-12,3 pH without Na+ error)/ Horizontal mounting | Not required | 5 m (16,5 ft.) | 3/4" NPT | 250 |
| PH870CDTCLC | FLS Measurement Instrumentation | FLS systém pro měření a regulaci | ph / ORP / pressure-level Electrodes | pH/ORP elektrody s tělem z epoxydu, C-PVC, rytonu nebo skla | Pt100 included | 0-14 pH (0-12,3 pH without Na+ error)/ Low conductivity (10 [CS:Simbolo:μ]S/cm | Not required | 5 m (16,5 ft.) | 3/4" NPT | 250 |
- APPLICATIONS • Processing and Manufacturing industry • Chemical processing • Water treatment processes • Cooling processes • Heating processes MAIN FEATURES • Temperature sensor combined • Flat surface electrodes • Tough Ryton body • Double threaded body for in line and submersion installation • Double junction technology • HM option for horizontal mounting • HF option for liquids with HF (max 2%) • LC option for liquid with a conductivity lower than 100μS/cm
