PMDK
DIAPHRAGM VALVES
Wall mounting plate
MAGNUM 3G is completed with a range of tools and accessories to help the installer
Další charakteristika:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)

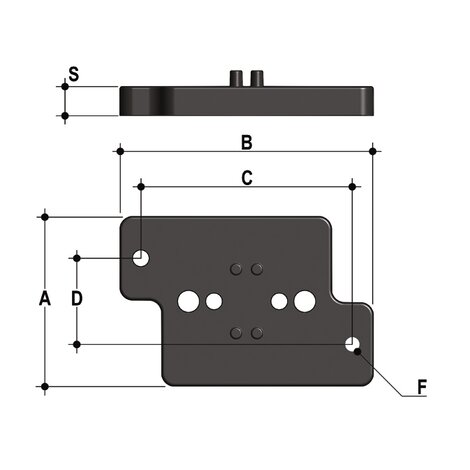

| Objednací číslo | Materiál | Kategorie | d | DN | product.detail.attribute.A | B | C | D | product.detail.attribute.F | S | product.detail.attribute.to be used with: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDK1 | FLS Measurement Instrumentation | Příslušenství k ručním armatury | 32 | 25 | 65 | 97 | 81 | 33 | 5,5 | 11 | DK - DKL - DKB - DKD |
| PMDK2 | FLS Measurement Instrumentation | Příslušenství k ručním armatury | 75 | 65 | 65 | 144 | 130 | 33 | 6,5 | 11 | DK - DKL - DKB - DKD |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
