PMKD
DUAL BLOCK® SERIES BALL VALVES DN 10÷50

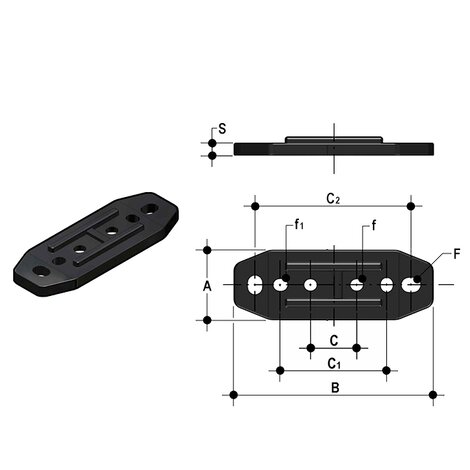

Wall mounting plate
MAGNUM 3G is completed with a range of tools and accessories to help the installer
Další charakteristika:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)
| Objednací číslo | Materiál | Kategorie | d | DN | product.detail.attribute.A | B | C | C (5:1) | product.detail.attribute.C[5:2] | product.detail.attribute.F | product.detail.attribute.f | product.detail.attribute.f[5:1] | S | product.detail.attribute.to be used with: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PMKD1 | FLS Measurement Instrumentation | Příslušenství k ručním armatury | 32 | 25 | 30 | 86 | 20 | 46 | 67,5 | 6,5 | 5,3 | 5,5 | 5 | VKD-VKR |
| PMKD2 | FLS Measurement Instrumentation | Příslušenství k ručním armatury | 63 | 50 | 40 | 122 | 30 | 72 | 102 | 6,5 | 6,3 | 6,5 | 6 | VKD-VKR |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
