Power Quick/CP
DUAL BLOCK® SERIES BALL VALVES DN 10÷50
The valve can be equipped with pneumatic actuators, using the PP-GR module reproducing the drilling pattern foreseen by ISO 5211
MAGNUM 3G is completed with a range of tools and accessories to help the installer
Další charakteristika:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)

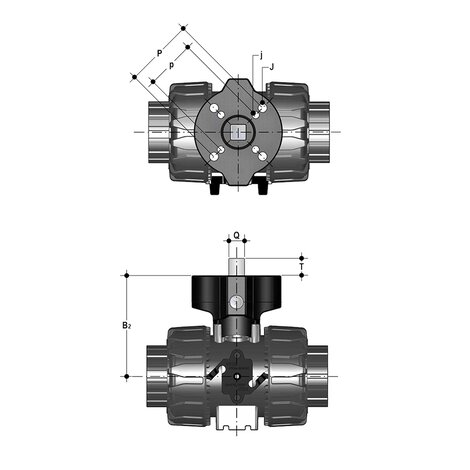

| Objednací číslo | d | DN | product.detail.attribute.B[5:2] | Balení ks | product.detail.attribute.T | product.detail.attribute.p x j | product.detail.attribute.P x J | product.detail.attribute.ISO | product.detail.attribute.Square | product.detail.attribute.to be used with: |
|---|---|---|---|---|---|---|---|---|---|---|
| PQCP020 | 20 | 15 | 58 | 11 | 12 | F03 x 5,5 | F04 x 5,5 | F03-04 | 11 | VKD-TKD |
| PQCP025 | 25 | 20 | 69 | 11 | 12 | *F03 x 5,5 | F05 x 6,5 | F03-05 | 11 | VKD-TKD |
| PQCP025F04 | 25 | 20 | - | - | - | F04 | - | F04 | 11 | VKD-TKD |
| PQCP032 | 32 | 25 | 74 | 11 | 12 | *F03 x 5,5 | F05 x 6,5 | F03-05 | 11 | VKD-TKD |
| PQCP032F04 | 32 | 25 | - | - | - | F04 | F05 x 6,5 | F04 | 11 | VKD-TKD |
| PQCP040 | 40 | 32 | 91 | 14 | 16 | F05-07* | F07 x 8,5 | F05-07 | 14 | VKD-TKD |
| PQCP050 | 50 | 40 | 97 | 14 | 16 | F05-07* | F07 x 8,5 | F05-07 | 14 | VKD-TKD |
| PQCP063 | 63 | 50 | 114 | 14 | 16 | F05-07* | F07 x 8,5 | F05-07 | 14 | VKD-TKD |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
