PRESSURE PIPE PN16 SDR 21 - S10
PRESSURE PIPE

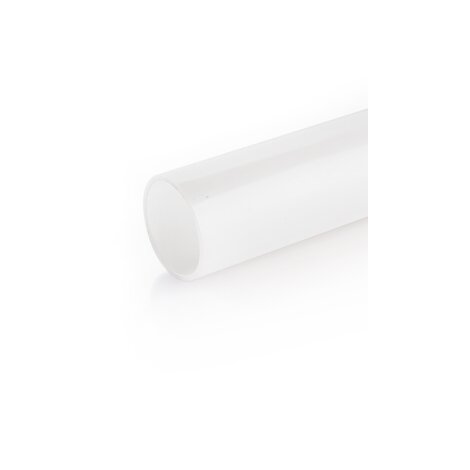

Pressure pipe in PVDF according to ISO 10931, translucent white, standard length 5m
Pressure pipes for connection system by butt or socket welding.
| Objednací číslo | Materiál | Kategorie | d | DN | S | product.detail.attribute.kg/m |
|---|---|---|---|---|---|---|
| PIPEF21016 | PVDF system | Trubky | 16 | 10 | 1,9 | 0,137 |
| PIPEF21020 | PVDF system | Trubky | 20 | 15 | 1,9 | 0,21 |
| PIPEF21025 | PVDF system | Trubky | 25 | 20 | 1,9 | 0,269 |
| PIPEF21032 | PVDF system | Trubky | 32 | 25 | 2,4 | 0,435 |
| PIPEF21040 | PVDF system | Trubky | 40 | 32 | 2,4 | 0,553 |
| PIPEF21050 | PVDF system | Trubky | 50 | 40 | 3 | 0,825 |
| PIPEF21063 | PVDF system | Trubky | 63 | 50 | 3 | 1,09 |
| PIPEF21075 | PVDF system | Trubky | 75 | 65 | 3,6 | 1,55 |
| PIPEF21090 | PVDF system | Trubky | 90 | 80 | 4,3 | 2,22 |
| PIPEF21110 | PVDF system | Trubky | 110 | 100 | 5,3 | 3,33 |
