QBAM
FITTINGS FOR BUTT WELDING - STUBS
Short spigot stub for butt welding for backing rings ANSI B16.5 cl.150 OAB* SDR 17,6 - S 8,3
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).

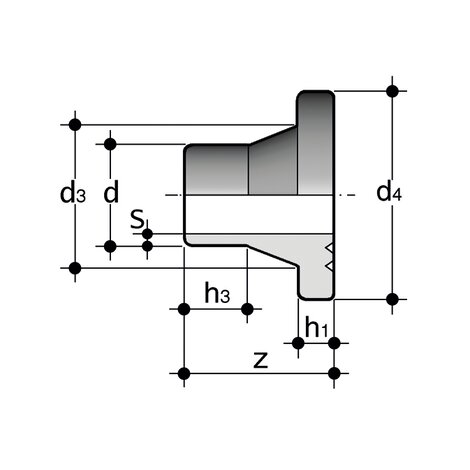

| Objednací číslo | Materiál | Kategorie | d | product.detail.attribute.OAB size | product.detail.attribute.d[5:3] | product.detail.attribute.d[5:4] | product.detail.attribute.h[5:1] | product.detail.attribute.h[5:3] | S | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QBAM17114 | PP-H system | Tvarovky | 40 | 1” 1/4 | 50 | 72 | 11 | 24 | 2,3 | 50 | 60 |
| QBAM17112 | PP-H system | Tvarovky | 50 | 1” 1/2 | 61 | 84,5 | 12 | 23 | 2,9 | 50 | 77 |
| QBAM17300 | PP-H system | Tvarovky | 90 | 3” | 105 | 132 | 17 | 43 | 5,1 | 80 | 280 |
