QRV

SOLVENT WELD FITTINGS - STUBS
Serrated face stub according to DIN 8063 PN 10/16 with solvent weld socket, for use with stubs QPV/QRV and flat gasket (for gasket sizes, see QHV)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
Zpět Produktový list

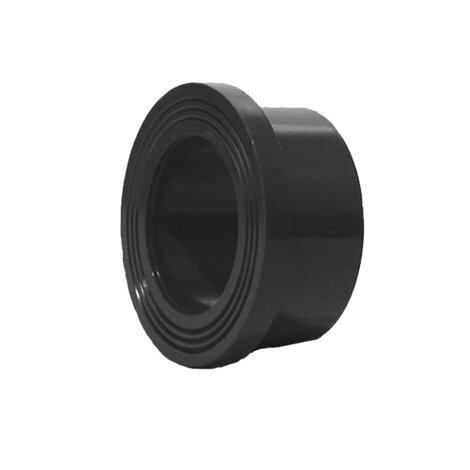

Immagine del raccordo per incollaggio QRV collari per flangiatura

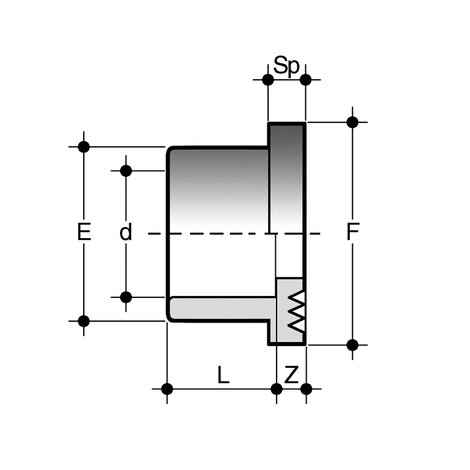

Disegno tecnico del raccordo per incollaggio - collari per flangiatura QRV
Immagine del raccordo per incollaggio QRV collari per flangiatura
Disegno tecnico del raccordo per incollaggio - collari per flangiatura QRV
Objednací číslo Materiál Kategorie product.detail.attribute. d DN PN E product.detail.attribute.F L product.detail.attribute.Sp Z g
QRV040 PVC-U system Tvarovky I 40 32 16 50 61 26 8 3 40
QRV050 PVC-U system Tvarovky I 50 40 16 61 73 31 8 3 62
QRV063 PVC-U system Tvarovky I 63 50 16 76 90 38 9 3 105
QRV075 PVC-U system Tvarovky I 75 65 16 90 105 44 10 3 160
QRV090 PVC-U system Tvarovky I 90 80 16 108 125 51 10 5 275
QRV110 PVC-U system Tvarovky I 110 100 16 131 150 61 12 4 445
QRV125 PVC-U system Tvarovky I 125 125 16 147 168 69 13 5 750
QRV140 PVC-U system Tvarovky I 140 125 16 165 188 76 14 5 790
QRV160 PVC-U system Tvarovky I 160 150 16 188 212 86 16 4,5 1140
QRV200 PVC-U system Tvarovky - 200 200 16 230 254 106 18 5,5 1840
QRV225 PVC-U system Tvarovky - 225 200 16 245 273 119 25 5,5 1750
QRV250 PVC-U system Tvarovky - 250 250 16 270 306 131 20 8,5 2140
QRV280 PVC-U system Tvarovky - 280 250 10 307 327 147 32 14,5 3650
QRV315 PVC-U system Tvarovky - 315 300 10 346 377 165 32 13 4950
QRV355 PVC-U system Tvarovky - 355 350 4 386 413 184 29 8 5400
QRV400 PVC-U system Tvarovky - 400 400 4 430 483 206 26 12 6500
QRV450 PVC-U system Tvarovky - 450 450 4 486 538 - 19 8 5200
QRV500 PVC-U system Tvarovky - 500 500 4 532 574 - 18 - 3000
