FITTINGS FOR SOCKET WELDING - REDUCERS

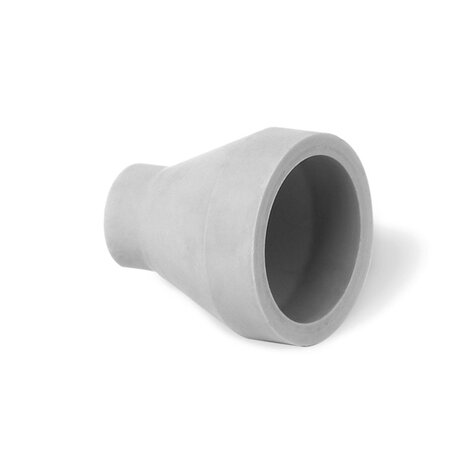

Concentric reducer, short spigot, for butt welding SDR 17,6 - S 8,3
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
Zpět Produktový list
RBM
RBM
RBM
RBM

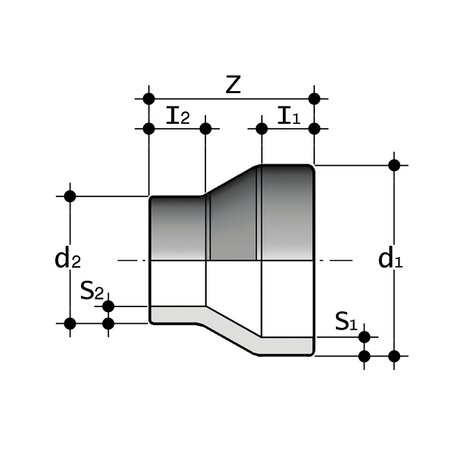

Objednací číslo Materiál Kategorie product.detail.attribute.d[5:1] product.detail.attribute.d[5:2] product.detail.attribute.l[5:1] product.detail.attribute.l[5:2] Z product.detail.attribute.S[5:1] product.detail.attribute.S[5:2] g
RBM17050032 PP-H system Tvarovky 50 32 12 12 55 2.9 2 17
RBM17050040 PP-H system Tvarovky 50 40 12 12 55 2.9 2,3 20
RBM17063032 PP-H system Tvarovky 63 32 16 12 65 3.6 2 32
RBM17063040 PP-H system Tvarovky 63 40 16 12 65 3.6 2,3 36
RBM17063050 PP-H system Tvarovky 63 50 16 12 65 3.6 2.9 38
RBM17075050 PP-H system Tvarovky 75 40 19 12 71 4.3 2,3 50
RBM17075063 PP-H system Tvarovky 75 50 19 12 71 4.3 2.9 54
RBM17090063 PP-H system Tvarovky 90 50 22 12 80 5,1 2.9 86
RBM17090075 PP-H system Tvarovky 90 63 22 16 80 5,1 3.6 82
RBM17110063 PP-H system Tvarovky 110 50 28 12 105 6.3 2.9 100
RBM17110075 PP-H system Tvarovky 110 63 28 16 97 6.3 3.6 100
RBM17110090 PP-H system Tvarovky 110 75 28 19 97 6.3 4.3 90
RBM17160110 PP-H system Tvarovky 160 90 40 22 135 9.1 5,1 400
RBM17180090 PP-H system Tvarovky 160 140 40 35 124 9.1 8 250
RBM17200160 PP-H system Tvarovky 200 140 50 35 154 11.4 8 750
RBM17225160 PP-H system Tvarovky 225 140 52 49 150 12.7 8 1060
RBM17280200 PP-H system Tvarovky 250 225 60 55 182 14.2 12.8 680
RBM17280225 PP-H system Tvarovky 280 200 85 70 200 15.9 11.4 2400
RBM17315225 PP-H system Tvarovky 315 200 95 85 230 17.9 11.4 3220
RBM17315250 PP-H system Tvarovky 315 225 84 60 238 17.9 12.8 3320
RBM17315280 PP-H system Tvarovky 315 250 95 95 230 17.9 14.2 3500
RBM17355200 PP-H system Tvarovky 315 280 80 70 222 17.9 15.9 3510
RBM17355225 PP-H system Tvarovky 355 200 57 40 160 20,1 11.4 3220
RBM17355250 PP-H system Tvarovky 355 225 57 40 140 20,1 12,7 3200
RBM17355280 PP-H system Tvarovky 355 250 54 40 130 20,1 14,2 2300
RBM17355315 PP-H system Tvarovky 355 280 53 40 120 20.1 15.9 2740
RBM17400225 PP-H system Tvarovky 355 315 53 40 110 20.1 17.9 2500
RBM17400250 PP-H system Tvarovky 400 225 64 40 160 22.7 12.7 4600
RBM17400280 PP-H system Tvarovky 400 250 61 40 150 22.7 14.2 4400
RBM17400315 PP-H system Tvarovky 400 280 60 40 140 22.7 15.9 4200
RBM17400355 PP-H system Tvarovky 400 315 50 40 120 22.7 17.9 3360
RBM17450280 PP-H system Tvarovky 400 355 51 40 110 22.7 20.1 3160
RBM17450315 PP-H system Tvarovky 450 280 65 40 160 25.5 15.9 4360
RBM17450355 PP-H system Tvarovky 450 315 55 40 140 25.5 17.9 4900
RBM17450400 PP-H system Tvarovky 450 355 57 40 130 25.5 20.1 4900
RBM17500315 PP-H system Tvarovky 450 400 60 40 120 25.5 22.7 4600
RBM17500355 PP-H system Tvarovky 500 315 71 40 170 28.4 17.9 8440
RBM17500400 PP-H system Tvarovky 500 355 62 40 150 28.4 20.1 7720
RBM17500450 PP-H system Tvarovky 500 400 65 40 140 28.4 22.7 7360
RBM17560400 PP-H system Tvarovky 500 450 60 40 120 28.4 25.5 5260
RBM17560450 PP-H system Tvarovky 560 400 68 40 160 31.7 22.7 9400
RBM17560500 PP-H system Tvarovky 560 450 62 40 140 31.7 25.5 8960
RBM17630400 PP-H system Tvarovky 560 500 67 40 130 31.7 28.4 7270
RBM17630450 PP-H system Tvarovky 630 400 78 40 190 35.7 22.7 14620
RBM17630500 PP-H system Tvarovky 630 450 72 40 170 35.7 25.5 13100
RBM17630560 PP-H system Tvarovky 630 500 67 40 150 35.7 28.4 11400
RBM17710500 PP-H system Tvarovky 630 560 64 40 130 35.7 31.7 10200
RBM17710560 PP-H system Tvarovky 710 500 84 40 190 40.2 25.5 19000
RBM17710630 PP-H system Tvarovky 710 560 81 40 170 40.2 28.4 17400
RBM17800560 PP-H system Tvarovky 710 630 71 40 140 40.2 35.7 13700
RBM17800630 PP-H system Tvarovky 800 560 85 40 200 45.3 31.7 19700
RBM17800710 PP-H system Tvarovky 800 630 85 40 180 45.3 35.7 23400
