RIF

FITTINGS FOR SOCKET WELDING - REDUCERS

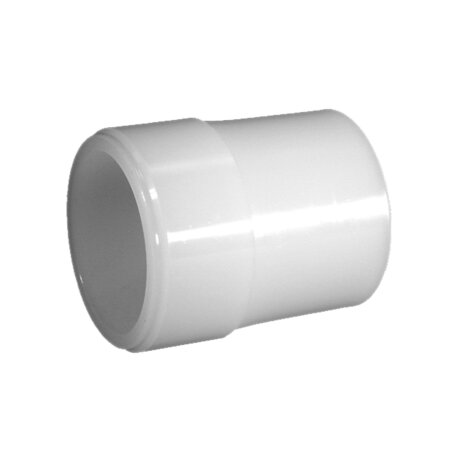

Reducer: spigot (d), reduced socket for socket welding (d1)

Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

Zpět Produktový list

Objednací číslo	Materiál	Kategorie	product.detail.attribute.d x d[5:1]	PN	E	H	Z	g
RIF020016	PVDF system	Tvarovky	20 x 16	16	20	35	22	11
RIF025020	PVDF system	Tvarovky	25 x 20	16	26	40	26	15
RIF032025	PVDF system	Tvarovky	32 x 25	16	32	46	30	28
RIF040025	PVDF system	Tvarovky	40 x 25	16	32	51	35	40
RIF040032	PVDF system	Tvarovky	40 x 32	16	40	54	36	47
RIF050032	PVDF system	Tvarovky	50 x 32	16	39	59	41	55
RIF050040	PVDF system	Tvarovky	50 x 40	16	47	63	43	70
RIF063032	PVDF system	Tvarovky	63 x 32	16	40	67	49	100
RIF063050	PVDF system	Tvarovky	63 x 50	16	60	76	53	130
RIF075063	PVDF system	Tvarovky	75 x 63	16	75	89	61	220
RIF090063	PVDF system	Tvarovky	90 x 63	16	73	97	70	280
RIF090075	PVDF system	Tvarovky	90 x 75	16	87	104	73	335
RIF110090	PVDF system	Tvarovky	110 x 90	16	103	121	85	520
