RIV

SOLVENT WELD FITTINGS - REDUCERS
Reducer: solvent weld spigot (d) or solvent weld socket (d2), solvent weld socket (d1 reduced) or solvent weld spigot (d3 reduced) (Fig.C)
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
Zpět Produktový list
Immagine del raccordo per incollaggio - riduzioni RIV

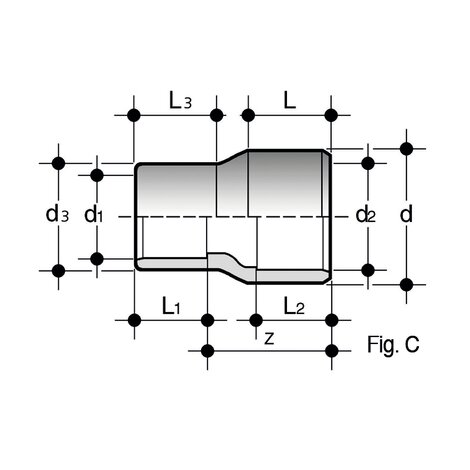

Disegno tecnico del raccordo per incollaggio - riduzioni RIV fig. C
Immagine del raccordo per incollaggio - riduzioni RIV
Disegno tecnico del raccordo per incollaggio - riduzioni RIV fig. C
Objednací číslo Materiál Kategorie product.detail.attribute. product.detail.attribute.d x d[5:2] x d[5:3] x d[5:1] PN E L L product.detail.attribute.L[5:2] product.detail.attribute.L[5:3] Z g
RIV090075050040 PVC-U system Tvarovky I 90 x 75 x 50 x 40 16 - 51 26 44 31 74 180
RIV090075063050 PVC-U system Tvarovky IF 90 x 75 x 63 x 50 16 - 51 31 44 38 74 200
RIV090075075063 PVC-U system Tvarovky F 90 x 75 x 75 x 63 16 - 51 38 44 44 74 260
RIV090075090075 PVC-U system Tvarovky - 90 x 75 x 90 x 75 16 - 51 44 44 51 74 325
