TRBM

FITTINGS FOR SOCKET WELDING - REDUCERS

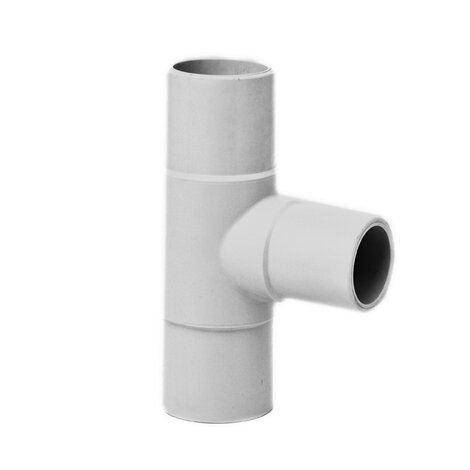

90° reducing Tee, short spigot for butt welding SDR 11 - S 5
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
Zpět Produktový list
TRBM
TRBM
TRBM
TRBM

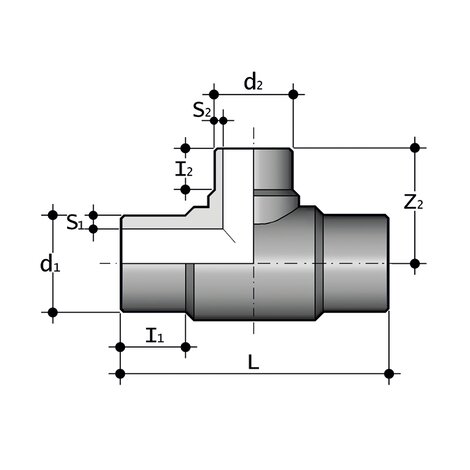

Objednací číslo Materiál Kategorie product.detail.attribute.d[5:1] product.detail.attribute.d[5:2] product.detail.attribute.i[5:1] product.detail.attribute.I[5:2] L product.detail.attribute.s[5:1] product.detail.attribute.s[5:2] product.detail.attribute.Z[5:2] g
TRBM11063050 PP-H system Tvarovky *63 50 63 56 215 5.8 4.6 103 300
TRBM11075032 PP-H system Tvarovky *75 32 70 46 256 6.8 2.9 103 500
TRBM11075050 PP-H system Tvarovky *75 50 70 56 253 6.8 4.6 113 540
TRBM11075063 PP-H system Tvarovky *75 63 70 63 255 6.8 5.8 117 560
TRBM11090032 PP-H system Tvarovky 90 32 53 23 203 8.2 2.9 85 560
TRBM11090050 PP-H system Tvarovky 90 50 53 28 213 8.2 4.6 100 580
TRBM11090063 PP-H system Tvarovky *90 63 82 66 282 8.2 5.8 127 790
TRBM11090075 PP-H system Tvarovky *90 75 73 68 280 8.2 6.8 138 800
TRBM11110032 PP-H system Tvarovky 110 32 66 22 234 10.0 2.9 91 940
TRBM11110050 PP-H system Tvarovky 110 50 66 27 240 10.0 4.6 101 950
TRBM11110063 PP-H system Tvarovky *110 63 88 68 328 10.0 5.8 149 1345
TRBM11110075 PP-H system Tvarovky *110 75 86 70 320 10.0 6.8 151 1250
TRBM11110090 PP-H system Tvarovky *110 90 86 79 320 10.0 8.2 158 1440
TRBM11125063 PP-H system Tvarovky 125 63 54 25 254 10.0 5.8 107 1360
TRBM11125090 PP-H system Tvarovky *125 90 - - 340 11.4 8.2 170 1660
TRBM11125110 PP-H system Tvarovky *125 110 90 83 341 11.4 10 170 1860
TRBM11140063 PP-H system Tvarovky 140 63 83 32 291 12.7 5.8 120 1740
TRBM11140075 PP-H system Tvarovky 140 75 81 35 291 12.7 6.8 130 1840
TRBM11140090 PP-H system Tvarovky 140 90 81 41 291 12.7 8.2 130 1960
TRBM11140110 PP-H system Tvarovky 140 110 50 44 291 12.7 10 140 2200
TRBM11160063 PP-H system Tvarovky *160 63 100 67 347 14,6 5,8 175 2640
TRBM11160075 PP-H system Tvarovky *160 75 98 74 343 14.6 6.8 180 2560
TRBM11160090 PP-H system Tvarovky *160 90 104 83 412 14.6 8.2 190 3685
TRBM11160110 PP-H system Tvarovky *160 110 104 89 414 14.6 10 200 3685
TRBM11160125 PP-H system Tvarovky 160 125 58 47 315 14.6 11.4 150 2750
TRBM11180063 PP-H system Tvarovky 180 63 125 30 348 16.4 5.8 140 2980
TRBM11180075 PP-H system Tvarovky 180 75 112 30 348 16.4 6.8 160 3060
TRBM11180090 PP-H system Tvarovky *180 90 - - 427 16.4 8.2 200 4360
TRBM11180110 PP-H system Tvarovky *180 110 - - 464 16.4 10 225 4640
TRBM11180125 PP-H system Tvarovky 180 125 - - 366 16.4 11.4 166 3220
TRBM11200063 PP-H system Tvarovky *200 63 122 63 500 18.2 5.8 190 5700
TRBM11200090 PP-H system Tvarovky *200 90 122 79 498 18.2 5.1 207 6550
TRBM11200110 PP-H system Tvarovky *200 110 122 82 500 18.2 6.3 215 7040
TRBM11200125 PP-H system Tvarovky *200 125 115 43 388 18.2 11.4 165 6920
TRBM11200160 PP-H system Tvarovky *200 160 122 98 500 18.2 9.1 234 8300
TRBM11225075 PP-H system Tvarovky *225 75 120 70 555 20.5 6.8 227 6400
TRBM11225090 PP-H system Tvarovky *225 90 129 82 556 20.5 8.2 228 9380
TRBM11225110 PP-H system Tvarovky *225 110 130 86 556 20.5 10 238 6600
TRBM11225125 PP-H system Tvarovky 225 125 135 40 456 20.5 11.4 178 6120
TRBM11225180 PP-H system Tvarovky 225 160 101 98 498 20.5 14,6 247 8280
TRBM11250110 PP-H system Tvarovky *225 180 135 135 558 20.5 16,4 280 9540
TRBM11250160 PP-H system Tvarovky *250 110 135 38 450 22.7 10 197 7700
TRBM11315110 PP-H system Tvarovky *250 160 110 58 458 22.7 14.6 213 8040
TRBM11315160 PP-H system Tvarovky *315 110 150 82 695 28.6 10 277 15280
TRBM11315225 PP-H system Tvarovky *315 160 150 102 695 28.6 14.6 290 16600
TRBM11315250 PP-H system Tvarovky *315 225 - - 650 28.6 20.5 335 24820
