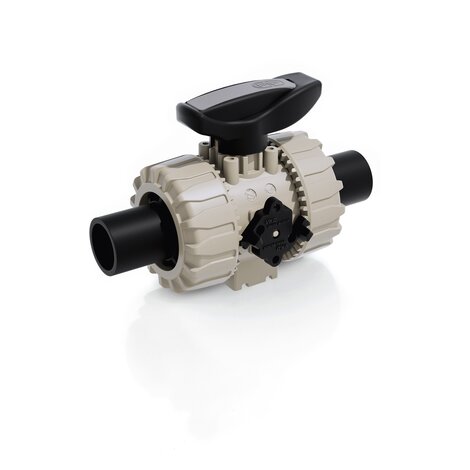

VKDBEM - DUAL BLOCK® 2-way ball valve

DUAL BLOCK® 2-way ball valve with PE100 SDR 11 male end connectors for butt welding or electrofusion (CVDE)
FIP has developed a VKD DUAL BLOCK® ball valve to introduce a high reference standard in thermosplastic valve design. VKD is a True Union ball valve that meets the most stringent needs$required by industrial applications.

Další charakteristika:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Zpět Produktový list
Valvola a sfera a 2 vie DUAL BLOCK® VKDBEM DN 10:50 in PP-H
VKDBEM - DUAL BLOCK® 2-way ball valve
Valvola a sfera a 2 vie DUAL BLOCK® VKDBEM DN 10:50 in PP-H
VKDBEM - DUAL BLOCK® 2-way ball valve

EPDM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKDBEM020E PP-H system Armatury VKD DN 10÷50 20 15 10 54 29 67 40 54 175 65 40,5 94 210
VKDBEM025E PP-H system Armatury VKD DN 10÷50 25 20 10 65 34,5 85 49 65 213 70 54 106 325
VKDBEM032E PP-H system Armatury VKD DN 10÷50 32 25 10 69,5 39 85 49 73 228 78 56 117 420
VKDBEM040E PP-H system Armatury VKD DN 10÷50 40 32 10 82,5 46 108 64 86 247 88 56 131 570
VKDBEM050E PP-H system Armatury VKD DN 10÷50 50 40 10 89 52 108 64 98 271 93 60,5 145 900
VKDBEM063E PP-H system Armatury VKD DN 10÷50 63 50 10 108 62 134 76 122 300 111 65,5 161 1500

FKM

Objednací číslo Materiál Kategorie Série d DN PN B B (5:1) C C (5:1) E H H (5:1) L Z g
VKDBEM020F PP-H system Armatury VKD DN 10÷50 20 15 10 54 29 67 40 54 175 65 40,5 94 210
VKDBEM025F PP-H system Armatury VKD DN 10÷50 25 20 10 65 34,5 85 49 65 213 70 54 106 325
VKDBEM032F PP-H system Armatury VKD DN 10÷50 32 25 10 69,5 39 85 49 73 228 78 56 117 420
VKDBEM040F PP-H system Armatury VKD DN 10÷50 40 32 10 82,5 46 108 64 86 247 88 56 131 570
VKDBEM050F PP-H system Armatury VKD DN 10÷50 50 40 10 89 52 108 64 98 271 93 60,5 145 900
VKDBEM063F PP-H system Armatury VKD DN 10÷50 63 50 10 108 62 134 76 122 300 111 65,5 161 1500
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
