VMOAM - Diaphragm valve
Diaphragm valve with flanged monolithic body, drilled ANSI B16.5 cl.150 #FF
The VM is particularly suitable for shutting off and regulating abrasive or dirty fluids. The handwheel control and diaphragm seal provide precise and effective control, while reducing the risk of$water hammer to a minimum.
Další charakteristika:
- Handwheel in (PA-GR) with high mechanical strength and ergonomic grip for optimum manageability
- Metal optical position indicator supplied as standard
- Full protection bonnet in PP-GR Internal circular and symmetrical diaphragm sealing area
- Diaphragm available in EPDM, FPM, PTFE (NBR on request) and easy to replace
- Threaded metal inserts for anchoring the valve
- New valve body internal design: substantially higher flow coefficient resulting in lower pressure drops. Optimised adjustment curve for effective and precise flow rate regulation
EPDM

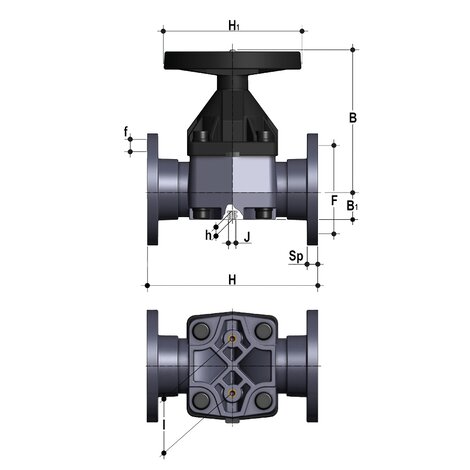

| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | B | B (5:1) | product.detail.attribute.F | product.detail.attribute.f | H | H (5:1) | product.detail.attribute.I | product.detail.attribute.J | product.detail.attribute.Sp | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VMOAM300E | PP-H system | Armatury | VM DN 80÷100 | 3" | 80 | *10 | 225 | 64 | 152,4 | 19 | 263 | 200 | 100 | M12 | 22 | 4 | 7500 |
| VMOAM400E | PP-H system | Armatury | VM DN 80÷100 | 4" | 100 | *10 | 295 | 72 | 190,5 | 19 | 328 | 250 | 120 | M12 | 23 | 8 | 10480 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | B | B (5:1) | product.detail.attribute.F | product.detail.attribute.f | H | H (5:1) | product.detail.attribute.I | product.detail.attribute.J | product.detail.attribute.Sp | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VMOAM300F | PP-H system | Armatury | VM DN 80÷100 | 3" | 80 | *10 | 225 | 64 | 152,4 | 19 | 263 | 200 | 100 | M12 | 22 | 4 | 7500 |
| VMOAM400F | PP-H system | Armatury | VM DN 80÷100 | 4" | 100 | *10 | 295 | 72 | 190,5 | 19 | 328 | 250 | 120 | M12 | 23 | 8 | 10480 |
PTFE
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | B | B (5:1) | product.detail.attribute.F | product.detail.attribute.f | H | H (5:1) | product.detail.attribute.I | product.detail.attribute.J | product.detail.attribute.Sp | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VMOAM300P | PP-H system | Armatury | VM DN 80÷100 | 3" | 80 | *10 | 225 | 64 | 152,4 | 19 | 263 | 200 | 100 | M12 | 22 | 4 | 7500 |
| VMOAM400P | PP-H system | Armatury | VM DN 80÷100 | 4" | 100 | *10 | 295 | 72 | 190,5 | 19 | 328 | 250 | 120 | M12 | 23 | 8 | 10480 |
- Connection system for solvent welding and for flanged joints
- Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
- Handwheel that stays at the same height during rotation, with internal bearing to minimise friction and operating torque
- Standard optical indicator
- Internal operating components in metal totally isolated from the conveyed fluid
- Bonnet fastening screws in STAINLESS steel protected against the external environment by PE plugs
- New flanged bodies: the new bodies, characterised by a monolithic flanged structure, are available in PVC-U, PVC-C, PP-H and PVDF. This design, free from body and flange joints, greatly reduces mechanical stress and increases system performance.
