VROAM - Check valve
Check valve with steel core backing ring, PP/FRP coated, drilled ANSI B16.5 cl.150 #FF
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
EPDM

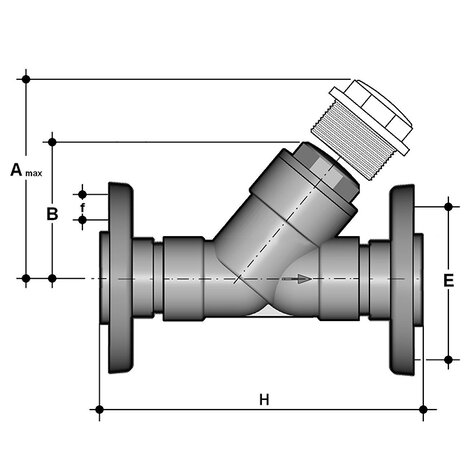

| Objednací číslo | Materiál | Kategorie | Série | product.detail.attribute.d - Size | DN | PN | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VROAM075E | PP-H system | Armatury | VR DN 10÷100 | 75 - 2"1/2 | 65 | 6 | 300 | 176 | 139,7 | 18 | 356 | 5595 |
| VROAM090E | PP-H system | Armatury | VR DN 10÷100 | 90 - 3" | 80 | 4 | 325 | 192 | 152,4 | 18 | 404 | 6385 |
| VROAM212E | PP-H system | Armatury | VR DN 10÷100 | - | - | - | - | - | - | - | - | - |
| VROAM300E | PP-H system | Armatury | VR DN 10÷100 | - | - | - | - | - | - | - | - | - |
FKM
| Objednací číslo | Materiál | Kategorie | Série | product.detail.attribute.d - Size | DN | PN | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VROAM075F | PP-H system | Armatury | VR DN 10÷100 | 75 - 2"1/2 | 65 | 6 | 300 | 176 | 139,7 | 18 | 356 | 5595 |
| VROAM090F | PP-H system | Armatury | VR DN 10÷100 | 90 - 3" | 80 | 4 | 325 | 192 | 152,4 | 18 | 404 | 6385 |
| VROAM212F | PP-H system | Armatury | VR DN 10÷100 | - | - | - | - | - | - | - | - | - |
| VROAM300F | PP-H system | Armatury | VR DN 10÷100 | - | - | - | - | - | - | - | - | - |
- Connection system for weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
