BIFXV

ADAPTOR FITTINGS - PVC-U/STAINLESS STEEL UNIONS.

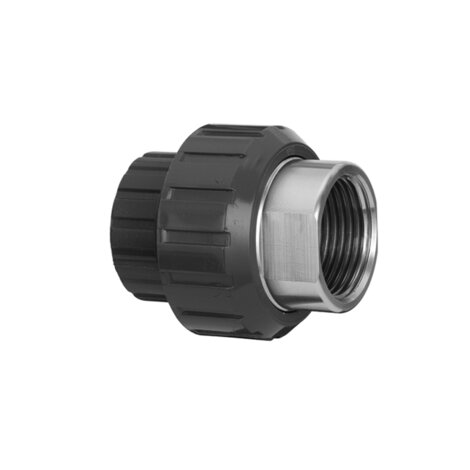

Adaptor union in PVC-U/stainless steel with solvent weld socket d and BSP threaded A316L stainless steel female end R with O-Ring in EPDM or FKM.

Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
Zpět Produktový list

EPDM

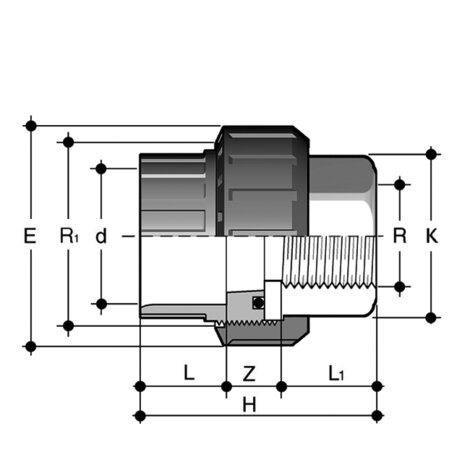

Objednací číslo Materiál Kategorie product.detail.attribute.d x R product.detail.attribute.R[5:1] PN E H product.detail.attribute.K L L Z g
BIFXV016038E PVC-U system Tvarovky 16 x 3/8" 3/4" 16 33 45,5 20 14 13,5 18 50
BIFXV020012E PVC-U system Tvarovky 20 x 1/2" 1" 16 41 48,5 25 16 16,5 16 81
BIFXV025034E PVC-U system Tvarovky 25 x 3/4" 1"1/4 16 50 54,5 32 19 18,5 17 152
BIFXV032100E PVC-U system Tvarovky 32 x 1" 1"1/2 16 58 59,5 38 22 19,5 18 170
BIFXV040114E PVC-U system Tvarovky 40 x 1"1/4 2" 16 72 68,5 48 26 21,5 21 353
BIFXV050112E PVC-U system Tvarovky 50 x 1"1/2 2"1/4 16 79 84,5 55 31 23 30,5 435
BIFXV063200E PVC-U system Tvarovky 63 x 2" 2"3/4 16 98 94,5 69 38 27 29,5 779

FKM

Objednací číslo Materiál Kategorie product.detail.attribute.d x R product.detail.attribute.R[5:1] PN E H product.detail.attribute.K L L Z g
BIFXV016038F PVC-U system Tvarovky 16 x 3/8" 3/4" 16 33 45,5 20 14 13,5 18 50
BIFXV020012F PVC-U system Tvarovky 20 x 1/2" 1" 16 41 48,5 25 16 16,5 16 81
BIFXV025034F PVC-U system Tvarovky 25 x 3/4" 1"1/4 16 50 54,5 32 19 18,5 17 152
BIFXV032100F PVC-U system Tvarovky 32 x 1" 1"1/2 16 58 59,5 38 22 19,5 18 170
BIFXV040114F PVC-U system Tvarovky 40 x 1"1/4 2" 16 72 68,5 48 26 21,5 21 353
BIFXV050112F PVC-U system Tvarovky 50 x 1"1/2 2"1/4 16 79 84,5 55 31 23 30,5 435
BIFXV063200F PVC-U system Tvarovky 63 x 2" 2"3/4 16 98 94,5 69 38 27 29,5 779
