BIROM
ADAPTOR FOR SOCKET WELDING - UNIONS

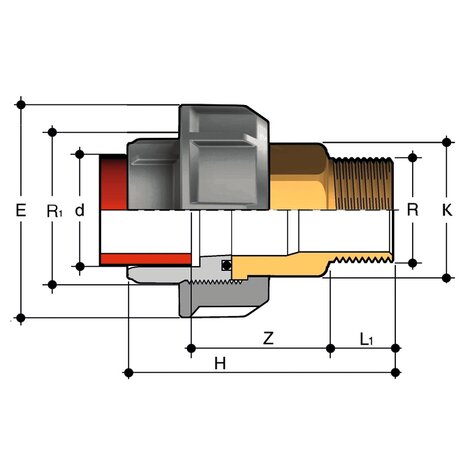

Adaptor union in PP-H/brass for socket welding (d), BSP threaded brass male end R with O-Ring in EPDM
Series of fittings designed for conveying fluids under pressure with a hot thread and weld connection system (socket welding).
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.d x R | product.detail.attribute.R[5:1] | PN | E | H | product.detail.attribute.K | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BIROM020012E | PP-H system | Tvarovky | 20 x 1/2" | 1" | 10 | 47 | 65 | 25 | 13,5 | 37,5 | 134 |
| BIROM025034E | PP-H system | Tvarovky | 25 x 3/4" | 1"1/4 | 10 | 58 | 71,5 | 32 | 15 | 40,5 | 227 |
| BIROM032100E | PP-H system | Tvarovky | 32 x 1" | 1"1/2 | 10 | 65 | 78 | 38 | 17,5 | 42,5 | 287 |
| BIROM040114E | PP-H system | Tvarovky | 40 x 1"1/4 | 2" | 10 | 78 | 87 | 48 | 19,5 | 47,5 | 534 |
| BIROM050112E | PP-H system | Tvarovky | 50 x 1"1/2 | 2"1/4 | 10 | 85 | 95 | 55 | 19,5 | 52,5 | 668 |
| BIROM063200E | PP-H system | Tvarovky | 63 x 2" | 2"3/4 | 10 | 103 | 113,5 | 69 | 24 | 62,5 | 1144 |
