FEOV/RM

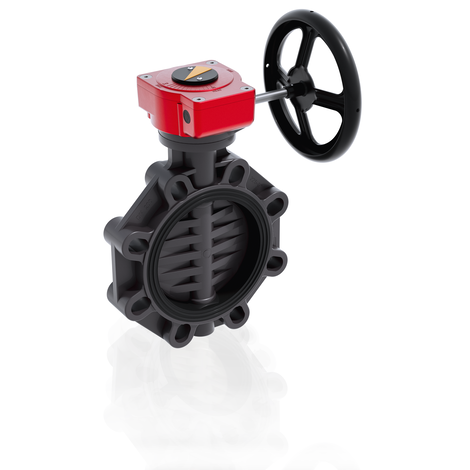

Gearbox operated Butterfly valve
The FE is a butterfly valve for shutting off or regulating flow, specifically designed for water applications and equipped with a customisable Labelling System.
Další charakteristika:
- Ergonomic multifunctional handle in HIPVC with the option for quick operation, graduated adjustment in 12 positions (every 7.5°). 180° reversible mounting
- Customisable Labelling System: integrated module, made of a transparent protection plug customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to the specific needs
- Drilling pattern with oval slots that allow coupling to flanges according to numerous international standards
- Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
- One-piece top flange with PVC-U rack. Drilling according to standard ISO 5211 for direct drive:£DN 40 ÷ 65: F05£DN 80 ÷ 150: F07£DN 200: F10
EPDM

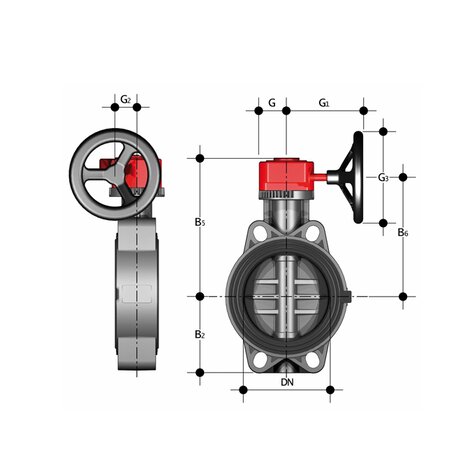

| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.B[5:2] | product.detail.attribute.B[5:5] | product.detail.attribute.B[5:6] | product.detail.attribute.G | product.detail.attribute.G1 | product.detail.attribute.G[5:2] | product.detail.attribute.G[5:3] | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FEOVRM075E | PVC-U system | Armatury | FE DN 40÷200 | 75 - 2"1/2 | 65 | 10 | 80 | 173 | 145 | 48 | 135 | 39 | 125 | 4 | 2380 |
| FEOVRM090E | PVC-U system | Armatury | FE DN 40÷200 | 90 - 3" | 80 | 10 | 90 | 187 | 159 | 48 | 135 | 39 | 125 | 4 | 2600 |
| FEOVRM110E | PVC-U system | Armatury | FE DN 40÷200 | 110 - 4" | 100 | 10 | 105 | 201 | 173 | 48 | 135 | 39 | 125 | 4 | 2950 |
| FEOVRM140E | PVC-U system | Armatury | FE DN 40÷200 | *140 - 5" | 125 | 10 | 121 | 220 | 192 | 48 | 144 | 39 | 200 | 4 | 4400 |
| FEOVRM160E | PVC-U system | Armatury | FE DN 40÷200 | 160 - 6" | 150 | 10 | 132 | 235 | 207 | 48 | 144 | 39 | 200 | 4 | 5100 |
| FEOVRM225E | PVC-U system | Armatury | FE DN 40÷200 | **225 - 8" | 200 | 10 | 161 | 288 | 257 | 65 | 175 | 60 | 200 | 8 | 9260 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.B[5:2] | product.detail.attribute.B[5:5] | product.detail.attribute.B[5:6] | product.detail.attribute.G | product.detail.attribute.G1 | product.detail.attribute.G[5:2] | product.detail.attribute.G[5:3] | product.detail.attribute.U | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FEOVRM075F | PVC-U system | Armatury | FE DN 40÷200 | 75 - 2"1/2 | 65 | 10 | 80 | 173 | 145 | 48 | 135 | 39 | 125 | 4 | 2380 |
| FEOVRM090F | PVC-U system | Armatury | FE DN 40÷200 | 90 - 3" | 80 | 10 | 90 | 187 | 159 | 48 | 135 | 39 | 125 | 4 | 2600 |
| FEOVRM110F | PVC-U system | Armatury | FE DN 40÷200 | 110 - 4" | 100 | 10 | 105 | 201 | 173 | 48 | 135 | 39 | 125 | 4 | 2950 |
| FEOVRM140F | PVC-U system | Armatury | FE DN 40÷200 | *140 - 5" | 125 | 10 | 121 | 220 | 192 | 48 | 144 | 39 | 200 | 4 | 4400 |
| FEOVRM160F | PVC-U system | Armatury | FE DN 40÷200 | 160 - 6" | 150 | 10 | 132 | 235 | 207 | 48 | 144 | 39 | 200 | 4 | 5100 |
| FEOVRM225F | PVC-U system | Armatury | FE DN 40÷200 | **225 - 8" | 200 | 10 | 161 | 288 | 257 | 65 | 175 | 60 | 200 | 8 | 9260 |
- Disk in PVC-U with through shaft
- Zinc plated square section steel stem completely isolated from the fluid complying with standard ISO 5211: DN 40 ÷ 65: 11 mm DN 80 ÷ 100: 14 mm DN 125 ÷ 150: 17 mm DN 200: 22 mm
- Can also be installed as a bottom discharge valve or tank dump valve
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Possibility of directly installing a gearbox or pneumatic and/or electric actuators with a standard drilling pattern according to standard ISO 5211 F05, F07, F10
