FKOC/RM LUG ISO-DIN - BUTTERFLY VALVE

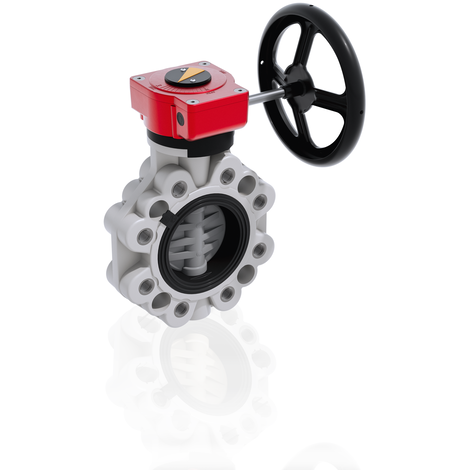

Gearbox operated Butterfly valve, version Lug ISO-DIN
The FK is a butterfly valve for shutting off or regulating flow, with structural characteristics that make it ideal for industrial applications requiring high performance and longterm reliability. This$valve is also equipped with the customisable Labelling System.

Další charakteristika:

  • Ergonomic handle in HIPVC equipped with locking and unlocking device, release, quick operation and graduated adjustment in 10 intermediate positions (DN 40÷200). The operating range, starting from the first few degrees of valve opening, also guarantees extremely low pressure drops.
  • Customisable Labelling System: integrated module in the handle, made of a transparent protection plug and a customisable tag holder using the LSE set (available as an accessory). The customisation lets you identify the valve on the system according to specific needs.
  • STAINLESS steel square section stem completely isolated from the fluid complying with standard£ISO 5211:£DN 40÷65: 11 mm£DN 80÷100: 14 mm£DN 125÷150: 17 mm£DN 200: 22 mm£DN 250÷300: 27 mm
  • Body in polypropylene based compound reinforced with fibreglass (PP-GR) resistant to UV rays and characterised by high mechanical strength.
  • Drilling pattern using oval slots that allow coupling to flanges according to numerous international standards. The special self-centring inserts in ABS supplied for DN 40÷200 guarantee the correct axial alignment of the valve during installation. For DN 250÷400 valves, the drilling pattern for the selfcentring system is of the traditional type according to DIN and ANSI standards.
  • Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
Zpět Produktový list
FKOC/RM LUG ISO-DIN - BUTTERFLY VALVE
FKOC/RM LUG ISO-DIN - BUTTERFLY VALVE
FKOC/RM LUG ISO-DIN - BUTTERFLY VALVE
FKOC/RM LUG ISO-DIN - BUTTERFLY VALVE

EPDM

Objednací číslo Materiál Kategorie Série d DN PN product.detail.attribute.øA product.detail.attribute.B[5:2] product.detail.attribute.B[5:5] product.detail.attribute.B[5:6] product.detail.attribute.f product.detail.attribute.G product.detail.attribute.G[5:1] product.detail.attribute.G[5:2] product.detail.attribute.G[5:3] H product.detail.attribute.U Z g
FKOLCRM075E PVC-C system Armatury FK DN 40÷400 75 65 10 145 80 174 146 M16 48 135 39 125 165 4 46 2908
FKOLCRM090E PVC-C system Armatury FK DN 40÷400 90 80 10 160 93 188 160 M16 48 135 39 125 185 12 49 3418
FKOLCRM110E PVC-C system Armatury FK DN 40÷400 110 100 10 180 107 202 174 M16 48 135 39 125 211 8 56 4333
FKOLCRM140E PVC-C system Armatury FK DN 40÷400 140 125 10 210 120 222 194 M16 48 144 39 200 240 8 64 5432
FKOLCRM160E PVC-C system Armatury FK DN 40÷400 160 150 10 240 134 235 207 M20 48 144 39 200 268 8 70 6907
FKOLCRM225E PVC-C system Armatury FK DN 40÷400 225 200 10 295 161 287 256 M20 65 204 60 200 323 8 71 10591

FKM

Objednací číslo Materiál Kategorie Série d DN PN product.detail.attribute.øA product.detail.attribute.B[5:2] product.detail.attribute.B[5:5] product.detail.attribute.B[5:6] product.detail.attribute.f product.detail.attribute.G product.detail.attribute.G[5:1] product.detail.attribute.G[5:2] product.detail.attribute.G[5:3] H product.detail.attribute.U Z g
FKOLCRM075F PVC-C system Armatury FK DN 40÷400 75 65 10 145 80 174 146 M16 48 135 39 125 165 4 46 2908
FKOLCRM090F PVC-C system Armatury FK DN 40÷400 90 80 10 160 93 188 160 M16 48 135 39 125 185 12 49 3418
FKOLCRM110F PVC-C system Armatury FK DN 40÷400 110 100 10 180 107 202 174 M16 48 135 39 125 211 8 56 4333
FKOLCRM140F PVC-C system Armatury FK DN 40÷400 140 125 10 210 120 222 194 M16 48 144 39 200 240 8 64 5432
FKOLCRM160F PVC-C system Armatury FK DN 40÷400 160 150 10 240 134 235 207 M20 48 144 39 200 268 8 70 6907
FKOLCRM225F PVC-C system Armatury FK DN 40÷400 225 200 10 295 161 287 256 M20 65 204 60 200 323 8 71 10591

FKM

Objednací číslo Materiál Kategorie Série d DN PN product.detail.attribute.øA product.detail.attribute.B[5:2] product.detail.attribute.B[5:5] product.detail.attribute.B[5:6] product.detail.attribute.f product.detail.attribute.G product.detail.attribute.G[5:1] product.detail.attribute.G[5:2] product.detail.attribute.G[5:3] H product.detail.attribute.U Z g
FKOLCRM075F0SF PVC-C system Armatury FK DN 40÷400 75 65 10 145 80 174 146 M16 48 135 39 125 165 4 46 2908
FKOLCRM090F0SF PVC-C system Armatury FK DN 40÷400 90 80 10 160 93 188 160 M16 48 135 39 125 185 12 49 3418
FKOLCRM110F0SF PVC-C system Armatury FK DN 40÷400 110 100 10 180 107 202 174 M16 48 135 39 125 211 8 56 4333
FKOLCRM140F0SF PVC-C system Armatury FK DN 40÷400 140 125 10 210 120 222 194 M16 48 144 39 200 240 8 64 5432
FKOLCRM160F0SF PVC-C system Armatury FK DN 40÷400 160 150 10 240 134 235 207 M20 48 144 39 200 268 8 70 6907
  • Interchangeable Disk in PVC-C with through shaft, available in different thermoplastic materials: PVC-U, PP-H, ABS, PVDF
  • Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40÷200 Medium Series 25, DN 250÷ 300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN 65÷200 K2, DN 250÷300 K3)
  • Can also be installed as an end line valve, bottom discharge valve or tank dump valve
  • Special Lug version PN 10 fully drilled to DIN 2501 or ANSI B16.5 cl.150 with molded-in AISI 316 stainless steel threaded inserts
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying ISO standard drilling pattern PP-GR flanges. DN 40 ÷ 200 valve fitted with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, F07, F10
  • DN 250÷300 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components with drilling according to standard ISO 5211 F10, F12, F14
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
