GBM
FITTINGS FOR BUTT WELDING - EQUAL ENDS

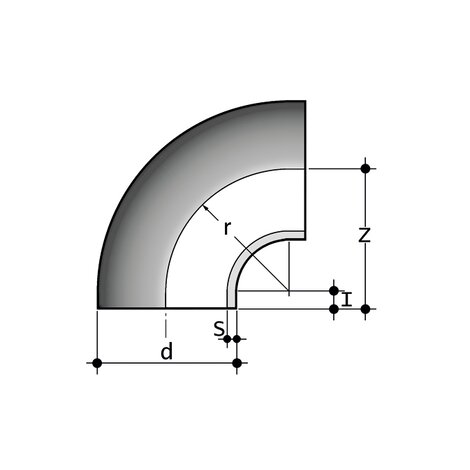

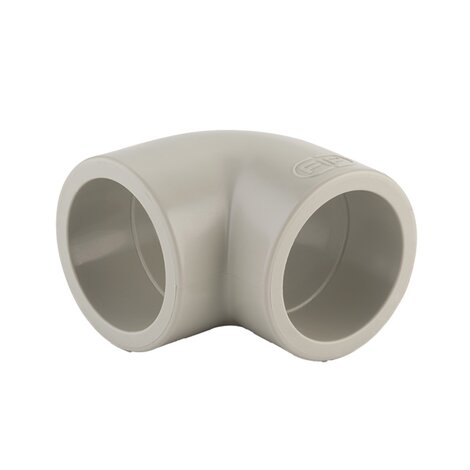

90° bend, short spigot for butt welding SDR 11 - S 5
Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
| Objednací číslo | Materiál | Kategorie | d | product.detail.attribute.l | product.detail.attribute.r | s | Z | g |
|---|---|---|---|---|---|---|---|---|
| GBM11125 | PP-H system | Tvarovky | 125 | 15 | 125 | 11,4 | 140 | 945 |
| GBM11140 | PP-H system | Tvarovky | 140 | 15 | 140 | 12,7 | 155 | 1300 |
| GBM11160 | PP-H system | Tvarovky | 160 | 15 | 160 | 14,6 | 175 | 1870 |
| GBM11180 | PP-H system | Tvarovky | 180 | 15 | 180 | 16,4 | 195 | 2767 |
| GBM11200 | PP-H system | Tvarovky | 200 | 15 | 200 | 18,2 | 215 | 3604 |
| GBM11225 | PP-H system | Tvarovky | 225 | 20 | 225 | 20,5 | 245 | 5292 |
| GBM11250 | PP-H system | Tvarovky | 250 | 25 | 250 | 22,7 | 275 | 7210 |
| GBM11280 | PP-H system | Tvarovky | 280 | 30 | 280 | 25,4 | 310 | 10020 |
| GBM11315 | PP-H system | Tvarovky | 315 | 35 | 315 | 28,6 | 350 | 13965 |
| GBM11355 | PP-H system | Tvarovky | 355 | 38 | 355 | 32,2 | 385 | 12760 |
| GBM11400 | PP-H system | Tvarovky | 400 | 41 | 400 | 36,3 | 438 | 18500 |
| GBM11450 | PP-H system | Tvarovky | 450 | 60 | 450 | 40,9 | 510 | 18500 |
| GBM11500 | PP-H system | Tvarovky | 500 | 60 | 500 | 45,4 | 560 | 18500 |
| GKM11020 | PP-H system | Tvarovky | 20 | 3 | 24 | 1,9 | 27 | 5 |
| GKM11025 | PP-H system | Tvarovky | 25 | 5 | 27 | 2,3 | 32 | 9 |
| GKM11032 | PP-H system | Tvarovky | 32 | 5 | 35 | 2,9 | 40 | 17 |
| GKM11040 | PP-H system | Tvarovky | 40 | 7 | 44 | 3,7 | 51 | 36 |
| GKM11050 | PP-H system | Tvarovky | 50 | 7 | 55 | 4,6 | 62 | 66 |
| GKM11063 | PP-H system | Tvarovky | 63 | 8 | 69 | 5,8 | 77 | 124 |
| GKM11075 | PP-H system | Tvarovky | 75 | 10 | 75 | 6,8 | 85 | 210 |
| GKM11090 | PP-H system | Tvarovky | 90 | 10 | 90 | 8,2 | 100 | 355 |
| GKM11110 | PP-H system | Tvarovky | 110 | 10 | 110 | 10 | 120 | 616 |
