GIF
FITTINGS FOR SOCKET WELDING - EQUAL SOCKET

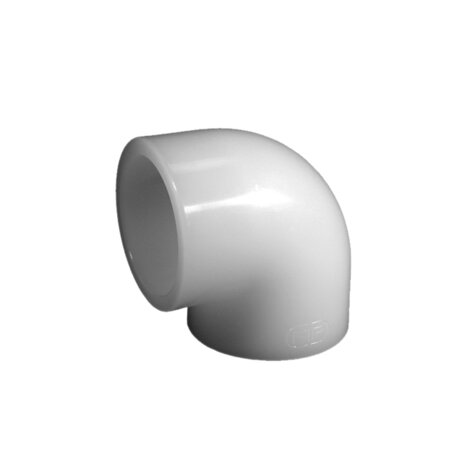

90° elbow for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
Objednací číslo | Materiál | Kategorie | d | PN | E | H | Z | g |
---|---|---|---|---|---|---|---|---|
GIF016 | PVDF system | Tvarovky | 16 | 16 | 22 | 23 | 10 | 14 |
GIF020 | PVDF system | Tvarovky | 20 | 16 | 28 | 27 | 13 | 28 |
GIF025 | PVDF system | Tvarovky | 25 | 16 | 33 | 32 | 16 | 43 |
GIF032 | PVDF system | Tvarovky | 32 | 16 | 41 | 37 | 19 | 65 |
GIF040 | PVDF system | Tvarovky | 40 | 16 | 52 | 43 | 23 | 125 |
GIF050 | PVDF system | Tvarovky | 50 | 16 | 63 | 51 | 27 | 195 |
GIF063 | PVDF system | Tvarovky | 63 | 16 | 77 | 61 | 34 | 340 |
GIF075 | PVDF system | Tvarovky | 75 | 16 | 92 | 73 | 42 | 575 |
GIF090 | PVDF system | Tvarovky | 90 | 16 | 110 | 83 | 47 | 850 |
GIF110 | PVDF system | Tvarovky | 110 | 16 | 133 | 99 | 58 | 1470 |
