GLV
FITTINGS ACCORDING TO BRITISH STANDARD - EQUAL SOCKET

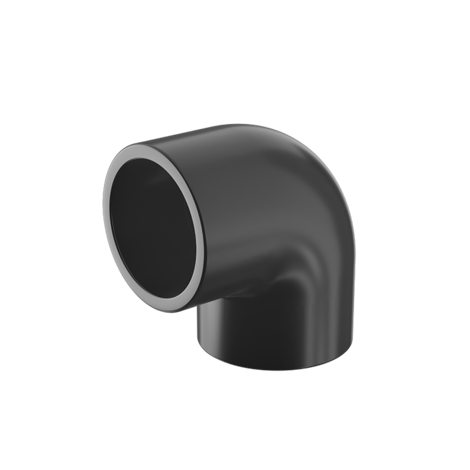

90° elbow with solvent weld sockets
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Objednací číslo | Materiál | Kategorie | d | PN | E | L | Z | g | product.detail.attribute.Class |
|---|---|---|---|---|---|---|---|---|---|
| GLV012 | PVC-U system | Tvarovky | 1/2" | 15 | 27 | 16,5 | 10,5 | 15 | E |
| GLV600 | PVC-U system | Tvarovky | 6" | 12 | 194,5 | 90 | 90 | 3480 | D |
| GLV400 | PVC-U system | Tvarovky | 4" | 15 | 131 | 63 | 58 | 972 | E |
| GLV300 | PVC-U system | Tvarovky | 3" | 15 | 108 | 51 | 48 | 768 | E |
| GIV075 | PVC-U system | Tvarovky | 2"1/2 | 15 | 90 | 44 | 40,5 | 427 | E |
| GLV200 | PVC-U system | Tvarovky | 2" | 15 | 76 | 38 | 33,5 | 340 | E |
| GLV112 | PVC-U system | Tvarovky | 1"1/2 | 15 | 61 | 31 | 27 | 160 | E |
| GLV114 | PVC-U system | Tvarovky | 1"1/4 | 15 | 54 | 27 | 21,5 | 110 | D |
| GLV100 | PVC-U system | Tvarovky | 1" | 15 | 41 | 22,5 | 17 | 45 | E |
| GLV034 | PVC-U system | Tvarovky | 3/4" | 15 | 33 | 19,5 | 13,5 | 30 | E |
| GLV800 | PVC-U system | Tvarovky | 8" | 12 | 257 | 115,5 | 169,5 | 8850 | D |
