HIF
FITTINGS FOR SOCKET WELDING - EQUAL SOCKET

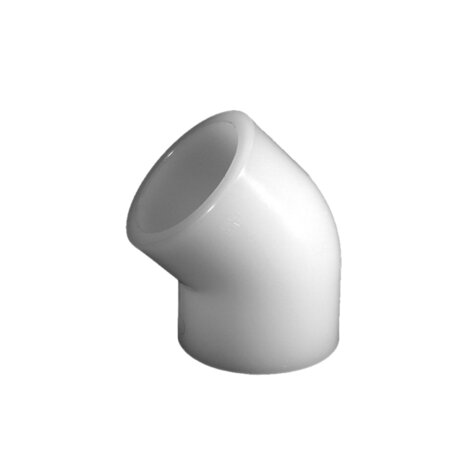

45° elbow for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

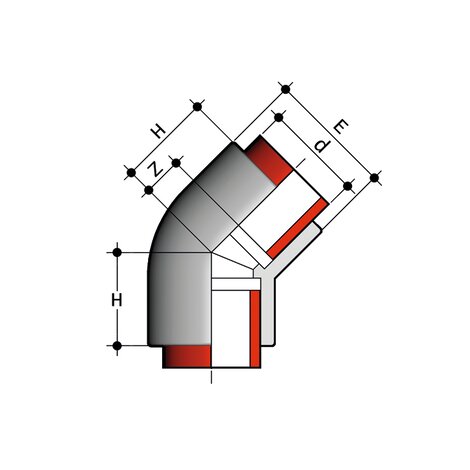

| Objednací číslo | Materiál | Kategorie | d | PN | E | H | Z | g |
|---|---|---|---|---|---|---|---|---|
| HIF020 | PVDF system | Tvarovky | 20 | 16 | 28 | 22 | 7 | 24 |
| HIF025 | PVDF system | Tvarovky | 25 | 16 | 33 | 25 | 9 | 37 |
| HIF032 | PVDF system | Tvarovky | 32 | 16 | 42 | 30 | 12 | 63 |
| HIF040 | PVDF system | Tvarovky | 40 | 16 | 51 | 37 | 16 | 110 |
| HIF050 | PVDF system | Tvarovky | 50 | 16 | 63 | 43 | 19 | 202 |
| HIF063 | PVDF system | Tvarovky | 63 | 16 | 79 | 52 | 25 | 337 |
| HIF075 | PVDF system | Tvarovky | 75 | 16 | 88 | 61 | 30 | 395 |
| HIF090 | PVDF system | Tvarovky | 90 | 16 | 105 | 73 | 37 | 645 |
| HIF110 | PVDF system | Tvarovky | 110 | 16 | 127 | 87 | 46 | 1095 |
