HLV
FITTINGS ACCORDING TO BRITISH STANDARD - EQUAL SOCKET

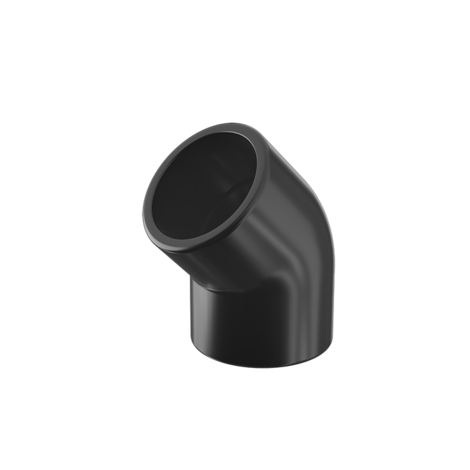

45° elbow with solvent weld sockets
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

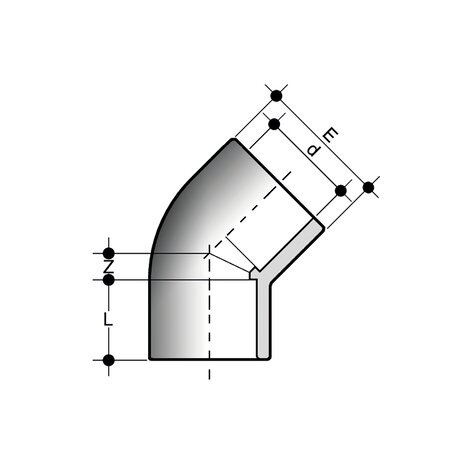

| Objednací číslo | Materiál | Kategorie | d | PN | E | L | Z | g | product.detail.attribute.Class |
|---|---|---|---|---|---|---|---|---|---|
| HLV012 | PVC-U system | Tvarovky | 1/2" | 15 | 27 | 16,5 | 5 | 13 | E |
| HLV034 | PVC-U system | Tvarovky | 3/4" | 15 | 33 | 19,5 | 5,5 | 20 | E |
| HLV100 | PVC-U system | Tvarovky | 1" | 15 | 41 | 22,5 | 7 | 45 | E |
| HLV114 | PVC-U system | Tvarovky | 1"1/4 | 15 | 50 | 26 | 10,5 | 85 | D |
| HLV112 | PVC-U system | Tvarovky | 1"1/2 | 15 | 61 | 31 | 11,5 | 155 | E |
| HLV200 | PVC-U system | Tvarovky | 2" | 15 | 76 | 38 | 14 | 291 | E |
| HIV075 | PVC-U system | Tvarovky | 2"1/2 | 15 | 90 | 44 | 17 | 315 | E |
| HLV300 | PVC-U system | Tvarovky | 3" | 15 | 107,5 | 51 | 21,5 | 565 | E |
| HLV400 | PVC-U system | Tvarovky | 4" | 15 | 131 | 61 | 26 | 740 | E |
