MIFV
ADAPTOR FITTINGS

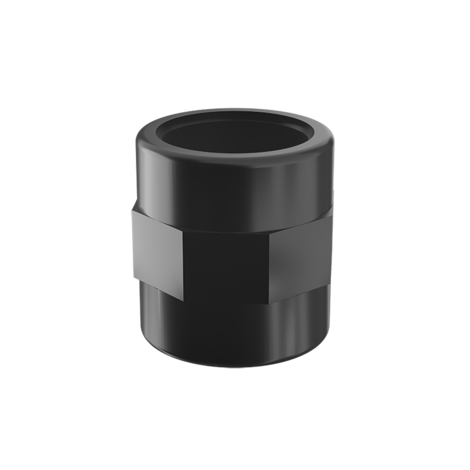

Double socket with solvent weld socket d and BSP threaded female end R.
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Objednací číslo | Materiál | Kategorie | product.detail.attribute.d x R | PN | E | product.detail.attribute.K | L | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| MIFV016038 | PVC-U system | Tvarovky | 16 x 3/8" | 16 | 23,5 | 24 | 14 | 11,4 | 5,5 | 12 |
| MIFV020012 | PVC-U system | Tvarovky | 20 x 1/2" | 16 | 28,5 | 29 | 16 | 15 | 4 | 20 |
| MIFV025034 | PVC-U system | Tvarovky | 25 x 3/4" | 16 | 35 | 35 | 19 | 16,3 | 5 | 30 |
| MIFV032100 | PVC-U system | Tvarovky | 32 x 1" | 16 | 42,9 | 43 | 22,3 | 22 | 2,5 | 48 |
| MIFV040114 | PVC-U system | Tvarovky | 40 x 1"1/4 | 16 | 50 | 50 | 26,5 | 21,4 | 4,5 | 56 |
| MIFV050112 | PVC-U system | Tvarovky | 50 x 1"1/2 | 16 | 60 | 61 | 31 | 21,4 | 7,6 | 102 |
| MIFV063200 | PVC-U system | Tvarovky | 63 x 2" | 16 | 76 | 76 | 38 | 25,7 | 7,3 | 181 |
