QHV/Y
FLAT GASKETS

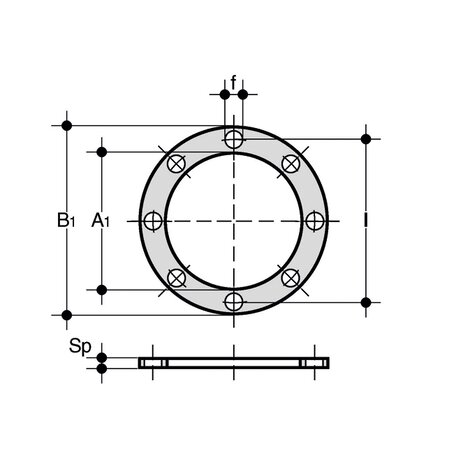

Self centering gasket in EPDM and FKM for stubs and flanges according to DIN 2501 and DIN 8063
| Objednací číslo | d | DN | product.detail.attribute.A[5:1] | B (5:1) | product.detail.attribute.F | product.detail.attribute.I | product.detail.attribute.U | product.detail.attribute.Sp |
|---|---|---|---|---|---|---|---|---|
| QHVY020E | 20 - 1/2" | 15 | 17 | 95 | 14 | 65 | 4 | 2 |
| QHVY025E | 25 - 3/4" | 20 | 22 | 107 | 14 | 76,3 | 4 | 2 |
| QHVY032E | 32 - 1" | 25 | 28 | 117 | 14 | 86,5 | 4 | 2 |
| QHVY040E | 40 - 1" 1/4 | 32 | 36 | 142,5 | 18 | 101 | 4 | 2 |
| QHVY050E | 50 - 1" 1/2 | 40 | 45 | 153,3 | 18 | 111 | 4 | 2 |
