RVOAV-RVOAT D 75 ÷ 110 - Sediment strainer
RVOAV PVC-U rigid - RVOAT PVC-U transparent$Sediment strainer with steel core backing ring , PP/FRP coated, drilled ANSI B16.5 cl.150 #FF
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM

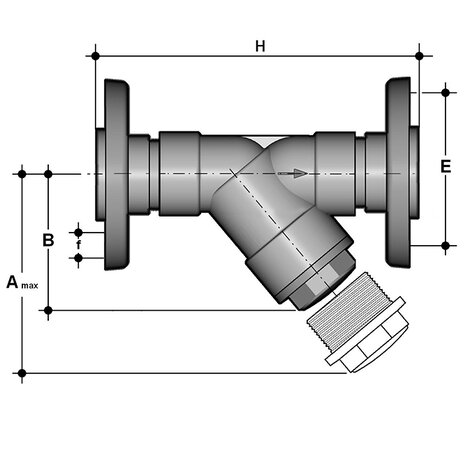

| Objednací číslo | Materiál | Kategorie | Série | d | DN | product.detail.attribute.PN RVOAV | product.detail.attribute.PN RVOAT | product.detail.attribute.A max | B | product.detail.attribute.F | product.detail.attribute.f | H | product.detail.attribute.Fig. | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVOAV212E | PVC-U system | Armatury | RV DN 10÷100 | 2”1/2 | 65 | 10 | 6 | 300 | 179 | 139,7 | 19,1 | 356 | B | 3600 |
| RVOAV300E | PVC-U system | Armatury | RV DN 10÷100 | 3” | 80 | 6 | 4 | 325 | 192 | 152,4 | 19,1 | 404 | B | 4910 |
| RVOAV400E | PVC-U system | Armatury | RV DN 10÷100 | 4” | 100 | 6 | 4 | 385 | 231 | 190,5 | 19,1 | 475 | C | 6790 |
| RVOAT212E | PVC-U system | Armatury | RV DN 10÷100 | 2”1/2 | 65 | 10 | 6 | 300 | 179 | 139,7 | 19,1 | 356 | B | 3600 |
| RVOAT300E | PVC-U system | Armatury | RV DN 10÷100 | 3” | 80 | 6 | 4 | 325 | 192 | 152,4 | 19,1 | 404 | B | 4910 |
| RVOAT400E | PVC-U system | Armatury | RV DN 10÷100 | 4” | 100 | 6 | 4 | 385 | 231 | 190,5 | 19,1 | 475 | C | 6790 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
