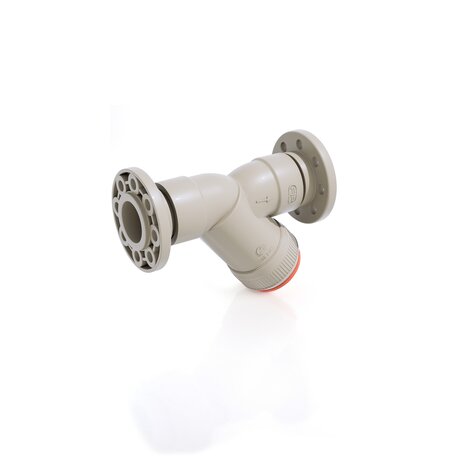

RVOM - Sediment strainer

Sediment strainer with steel core backing ring , PP/FRP coated, drilled EN/ISO/DIN PN10/16
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
Zpět Produktový list

EPDM

Objednací číslo Materiál Kategorie Série d DN PN product.detail.attribute.A max B product.detail.attribute.F product.detail.attribute.f H g
RVOM075E PP-H system Armatury RV DN 10÷100 75 65 6 300 176 145 18 356 5120
RVOM090E PP-H system Armatury RV DN 10÷100 90 80 4 325 192 160 18 404 6020
RVOM110E PP-H system Armatury RV DN 10÷100 110 100 4 385 231 180 18 475 7965

FKM

Objednací číslo Materiál Kategorie Série d DN PN product.detail.attribute.A max B product.detail.attribute.F product.detail.attribute.f H g
RVOM075F PP-H system Armatury RV DN 10÷100 75 65 6 300 176 145 18 356 5120
RVOM090F PP-H system Armatury RV DN 10÷100 90 80 4 325 192 160 18 404 6020
RVOM110F PP-H system Armatury RV DN 10÷100 110 100 4 385 231 180 18 475 7925
  • Connection system for weld, threaded and flanged joints
  • Strainer assembled on an easily removed support that facilitates cleaning or replacement
  • Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
