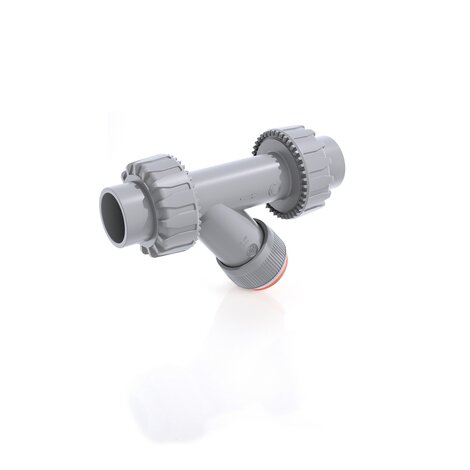

RVUAC - SEDIMENT STRAINER
Sediment strainer with female union ends for solvent welding, ASTM series
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVUAC012E | PVC-C system | Armatury | RV DN 10÷100 | 1/2” | 15 | 16 | 125 | 72 | 55 | 149 | 22,5 | 104 | 231 |
| RVUAC034E | PVC-C system | Armatury | RV DN 10÷100 | 3/4” | 20 | 16 | 145 | 84 | 66 | 172 | 25,5 | 121 | 392 |
| RVUAC100E | PVC-C system | Armatury | RV DN 10÷100 | 1” | 25 | 16 | 165 | 95 | 75 | 190 | 28,7 | 132,6 | 576 |
| RVUAC114E | PVC-C system | Armatury | RV DN 10÷100 | 1” 1/4 | 32 | 10 | 190 | 111 | 87 | 223 | 32 | 159 | 802 |
| RVUAC112E | PVC-C system | Armatury | RV DN 10÷100 | 1” 1/2 | 40 | 10 | 210 | 120 | 100 | 251 | 35 | 181 | 1199 |
| RVUAC200E | PVC-C system | Armatury | RV DN 10÷100 | 2” | 50 | 10 | 240 | 139 | 120 | 298 | 38,2 | 221,6 | 2018 |
FKM
| Objednací číslo | Materiál | Kategorie | Série | d | DN | PN | product.detail.attribute.A max | B | E | H | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVUAC012F | PVC-C system | Armatury | RV DN 10÷100 | 1/2” | 15 | 16 | 125 | 72 | 55 | 149 | 22,5 | 104 | 231 |
| RVUAC034F | PVC-C system | Armatury | RV DN 10÷100 | 3/4” | 20 | 16 | 145 | 84 | 66 | 172 | 25,5 | 121 | 392 |
| RVUAC100F | PVC-C system | Armatury | RV DN 10÷100 | 1” | 25 | 16 | 165 | 95 | 75 | 190 | 28,7 | 132,6 | 576 |
| RVUAC114F | PVC-C system | Armatury | RV DN 10÷100 | 1” 1/4 | 32 | 10 | 190 | 111 | 87 | 223 | 32 | 159 | 802 |
| RVUAC112F | PVC-C system | Armatury | RV DN 10÷100 | 1” 1/2 | 40 | 10 | 210 | 120 | 100 | 251 | 35 | 181 | 1199 |
| RVUAC200F | PVC-C system | Armatury | RV DN 10÷100 | 2” | 50 | 10 | 240 | 139 | 120 | 298 | 38,2 | 221,6 | 2018 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
